Achalasia and diffuse esophageal spasm: Spectrum of findings and complementary roles of barium studies and manometry

Applied Radiology — Vol. 35 , Issue 5 , pp. 19 -26

DOI: 10.37549/AR1425

Published: May 1, 2006

Marc S. Levine, MD

Categories

article Article ar

Achalasia and diffuse esophageal spasm (DES) are two of the more well-known esophageal motility disorders diagnosed on barium studies and manometry. Classically, achalasia is characterized by incomplete relaxation of the lower esophageal sphincter (LES) with absent peristalsis in the body of the esophagus,1-3 whereas DES is characterized by normal relaxation of the LES with periods of normal peristalsis interspersed with periods of weakened or absent peristalsis and abnormal simultaneous contractions.4-6 However, some patients with achalasia have complete relaxation of the LES, whereas others with DES have incomplete relaxation of the LES, so it is important to be aware of the various permutations of these esophageal motility disorders. In patients with achalasia, it is also important to differentiate the primary or idiopathic form of the disease from a secondary form caused by a malignant tumor involving the gastroesophageal junction. The purpose of this article is to review the spectrum of clinical, radiographic, and manometric findings in patients with achalasia (including primary and secondary achalasia) and DES and to discuss the relative roles of barium studies and manometry in diagnosing these esophageal motility disorders.

Primary achalasia

Primary achalasia is an idiopathic condition in which there is loss of the ganglion cells in the myenteric plexuses of the esophagus.7,8 This motility disorder leads to the absence of peristalsis in the body of the esophagus and incomplete relaxation of the LES.

Clinical findings

Primary achalasia usually develops in young or middle-aged adults <50 years of age.9 Achalasia is an insidious disease that progresses slowly over a period of many years. As a result, affected individuals typically present with long-standing dysphagia, which has a mean duration of 4 to 5 years at the time of diagnosis.9,10 Most patients are able to maintain their nutritional intake with little, if any, weight loss.9 Less frequently, these individuals may present with chest pain, regurgitation of undigested food, or recurrent aspiration pneumonias.3-5 Because symptoms are caused by incomplete relaxation of the LES, these patients usually have a marked clinical response to procedures for improving LES function, including endoscopic balloon dilation of the LES, botulinum toxin injections at the gastroesophageal junction, and, if necessary, laparoscopic or open surgical myotomy.1-5

Manometric findings

Primary achalasia is classically characterized on manometry by absent peristalsis in the body of the esophagus and incomplete relaxation of the LES, often accompanied by elevated LES resting pressures (ie, a hypertensive LES).1-3 However, some patients with achalasia have nonperistaltic contractions in the esophagus, and others have normal LES function on manometry. “Vigorous” achalasia, a common variant of achalasia that is characterized by simultaneous, ineffective, relatively high-amplitude contractions, has been found to account for as many as 30% of all cases of achalasia.11,12 The degree of relaxation of the LES on manometry is not a reliable criterion for diagnosing this condition, as some patients with typical clinical and radiographic findings of achalasia are found to have complete relaxation of the LES on manometry.13-15 Therefore, it is important to be aware of the spectrum of manometric findings in these patients.

Radiographic findings

Primary achalasia is characterized on barium studies by a dilated, flaccid esophagus with absent primary peristalsis in the esophageal body and impaired opening of the LES, causing a smooth, tapered, beaklike narrowing of the distal esophagus at or directly adjacent to the gastroesophageal junction (Figure 1).3,16,17 In patients with vigorous achalasia, barium studies may also reveal repetitive nonperistaltic contractions in the esophagus, which manifested as multiple indentations on the barium column that vary in size and shape at fluoroscopy. Depending on the degree of LES dysfunction, a standing column of barium typically develops in the esophagus, with emptying of barium into the stomach only after the column reaches a critical height. In patients with more long-standing dysphagia, the esophagus becomes progressively more dilated (sometimes with considerable retained fluid and debris), eventually assuming a tortuous or so-called “sigmoid” configuration (Figures 2 and 3).16,17

FIGURE 1.
FIGURE 1. Early primary achalasia. An upright left posterior oblique view from an esophagram shows early findings of achalasia with beaklike narrowing (arrow) of the distal esophagus near the gastroesophageal junction but no evidence of esophageal dilatation. Primary peristalsis was absent in the esophagus at fluoroscopy.

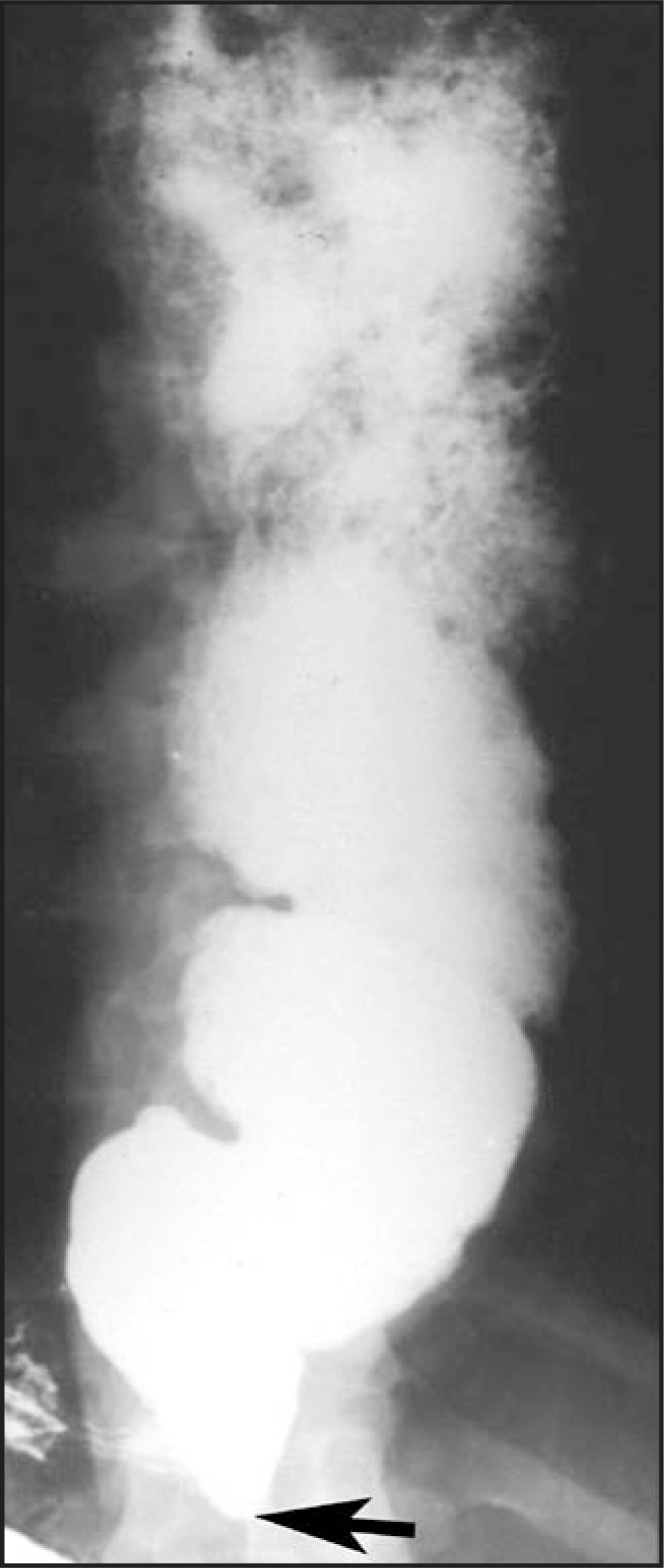

FIGURE 2.
FIGURE 2. Advanced primary achalasia. An upright frontal view from an esophagram shows more advanced achalasia with beaklike narrowing (arrow) above the gastroesophageal junction and a markedly dilated esophagus, which contains considerable debris.

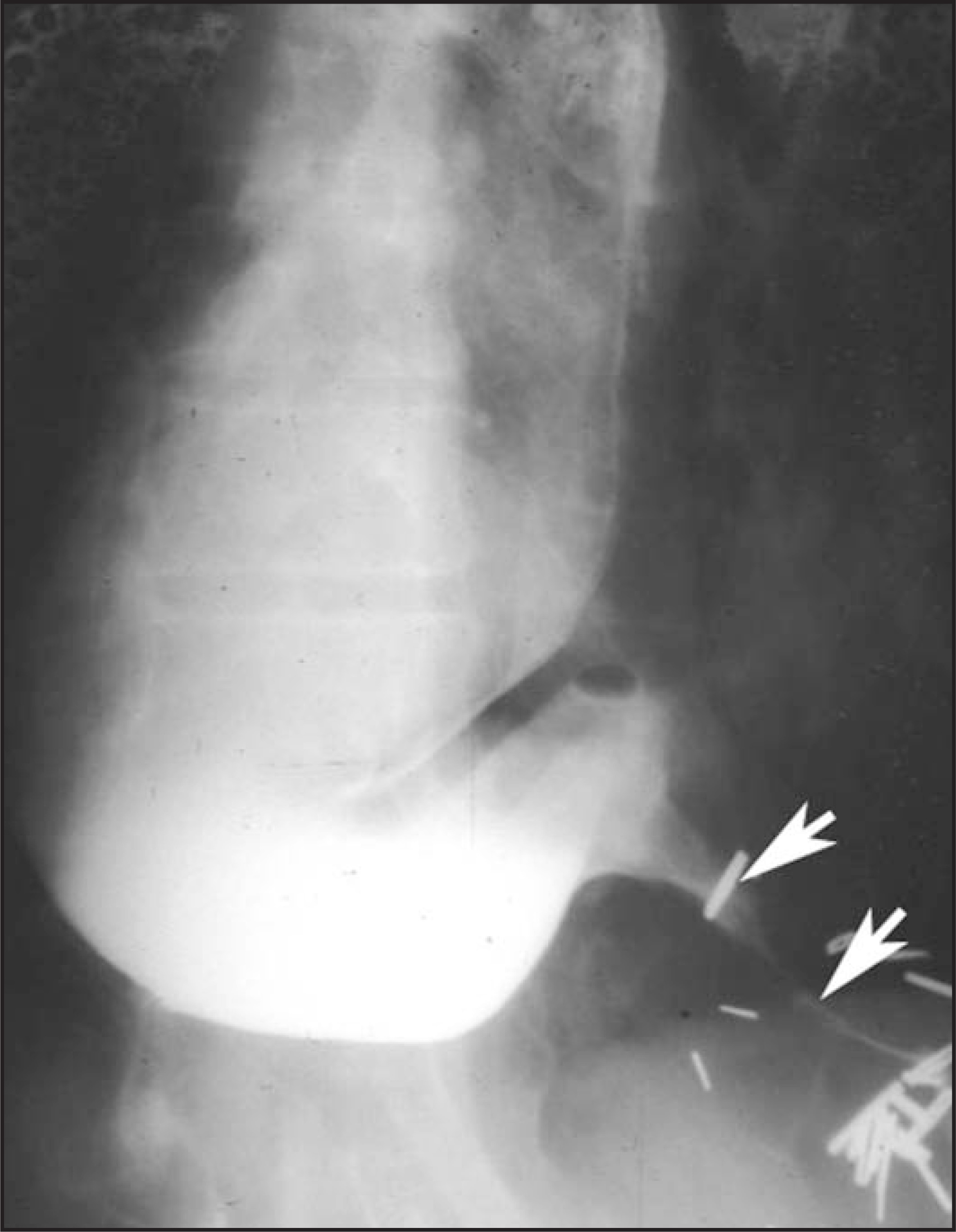

FIGURE 3.
FIGURE 3. Long-standing primary achalasia. An upright left posterior oblique view from an esophagram shows a massively dilated esophagus with tapered, beaklike narrowing (arrows) above the gastroesophageal junction. Note the sigmoid configuration of the distal esophagus, a sign of long-standing disease. Also note the surgical clips near the gastroesophageal junction from a failed Heller myotomy.

Advertisement

Barium studies versus manometry

In various studies, it has been shown that 20% to 30% of patients with typical features of achalasia on barium studies have complete relaxation of the LES and, in some cases, normal LES resting pressures on manometry (Figure 4).13-15 Despite the variable manometric findings, dysphagia in these individuals usually resolves after endoscopic or surgical treatment for achalasia. Thus, some patients with achalasia on barium studies may have no evidence of LES dysfunction on manometry. These observations raise questions about the role of manometry in patients with dysphagia and suspected achalasia. If barium studies reveal typical findings of achalasia, such patients can probably be treated without need for manometry, avoiding the cost, inconvenience, and discomfort of this procedure. Nevertheless, manometry may still be required for patients with clinically suspected achalasia who have equivocal or negative radiographic examinations. Therefore, in patients with typical radiographic findings of achalasia, the barium study can be used to guide treatment without need for manometry. If the radiographic findings are equivocal, however, manometry should be performed for a more certain diagnosis.15

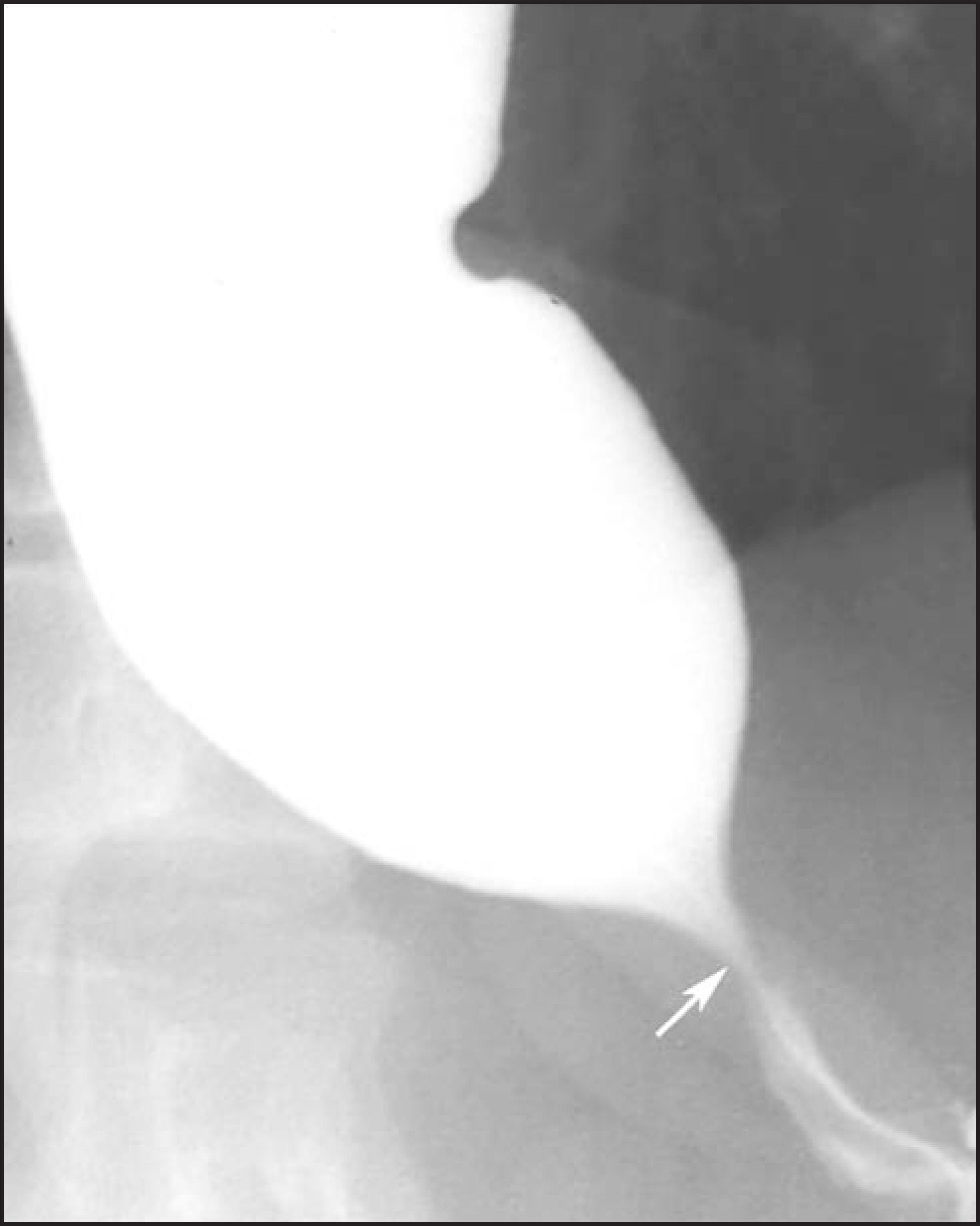

FIGURE 4.
FIGURE 4. Primary achalasia with normal lower esophageal sphincter function on manometry. Upright left posterior oblique view from an esophagram shows typical findings of achalasia with a dilated, aperistaltic esophagus, beaklike narrowing (arrow) near the gastroesophageal junction, and slow emptying of barium into the stomach. Manometry revealed complete relaxation of the lower esophageal sphincter during swallowing with a normotensive sphincter at rest. Despite the manometric findings, this patient’s dysphagia resolved after treatment with a Heller myotomy.

Secondary achalasia

Secondary achalasia (also known as pseudoachalasia) is caused by a malignant tumor at the gastroesophageal junction,18-23 or, less commonly, by benign conditions such as Chagas’ disease.24 Nearly 75% of patients with secondary achalasia are found to have an underlying carcinoma of the cardia,20 but secondary achalasia may also be caused by carcinoma of the esophagus or by other malignant tumors that metastasize to the gastroesophageal junction, including carcinoma of the lung, breast, pancreas, uterus, ovary, colon, and prostate.18,21-23

Clinical findings

Because secondary achalasia is usually caused by malignant tumor, affected individuals tend to be older patients (>60 years of age), with recent onset of dysphagia (<6 months in duration) and substantial weight loss.25 These clinical parameters contrast strikingly with those of primary achalasia, which tends to occur in younger people with long-standing dysphagia and little or no weight loss.9,10 Therefore, the clinical presentation is extremely helpful in differentiating the primary and secondary forms of the disease in patients with radiographic or manometric findings of achalasia. Nevertheless, overlap in these clinical parameters has been reported.26,27 In various studies, as many as 28% to 38% of patients with primary achalasia have been found to be >60 years of age,26,27 so patient age is not an infallible criterion for differentiating primary from secondary achalasia.

Manometric findings

The manometric findings in secondary achalasia may be indistinguishable from those in primary achalasia. At endoscopy, however, it is more difficult to advance the endoscope into the stomach in patients with secondary achalasia than it is in those with primary achalasia because of tumor circumferentially encasing the gastroesophageal junction.20,27,28 This observation, therefore, should increase the endoscopist’s suspicion of secondary achalasia.

Advertisement

Radiographic findings

In patients with secondary achalasia, barium studies usually reveal absent primary peristalsis in the body of the esophagus with tapered, beaklike narrowing of the distal esophagus near the gastroesophageal junction, mimicking the appearance of primary achalasia (Figure 5). However, other radiographic findings (such as eccentricity, nodularity, angulation, straightening, or shouldering of the narrowed distal segment) should raise concern about the possibility of secondary achalasia (Figure 6).18,21,22,29 Although these classic findings of secondary achalasia are present in only a small percentage of cases, investigators recently found that the narrowed distal esophageal segment is >3.5 cm in 80% of patients with secondary achalasia but rarely exceeds 3.5 cm in patients with primary achalasia (Figures 6 and 7).10 Thus, the length of the narrowed segment appears to be the single best criterion for differentiating primary achalasia from secondary achalasia on barium studies. Also, the esophagus tends to be considerably more dilated in primary achalasia than in secondary achalasia,10 presumably because of the more gradual course of the disease that allows the esophagus to progressively dilate over a period of years.

When achalasia is detected on barium studies, it is extremely important to evaluate the gastric cardia and fundus to rule out malignant tumor at the gastroesophageal junction as the cause of these findings. An advanced tumor at the cardia may be manifested on barium studies by a polypoid or ulcerated mass in this region or by an infiltrating or scirrhous lesion encasing the gastric fundus (Figure 5B).18,20,29 In other patients, barium studies may reveal thickened, lobulated folds and irregular areas of nodularity or ulceration that distort or obliterate the normal cardiac rosette,29 so optimal double-contrast technique is required to detect these lesions. Nevertheless, the cardia and fundus cannot be adequately evaluated on radiographic studies in many patients with secondary achalasia because of delayed emptying of barium from the esophagus (so, paradoxically, the stomach empties faster than it fills with barium).10 Radiologists, therefore, should be aware of the limitations of barium studies in evaluating the cardia and fundus in patients with suspected achalasia.

FIGURE 5.
FIGURE 5. Secondary achalasia caused by gastric carcinoma. (A) Upright frontal view from an esophagram shows a mildly dilated esophagus with tapered, beaklike narrowing (arrow) of the distal esophagus above the gastroesophageal junction. These findings are typical of achalasia. (B) Steep left posterior oblique view of the stomach shows an advanced scirrhous carcinoma encasing the gastric fundus (arrows). Tumor had invaded the gastroesophageal junction and the distal esophagus, causing secondary achalasia. (Images reprinted with permission from Levine MS. Other malignant tumors of the esophagus. In: Gore RM, Levine MS, eds. Textbook of Gastrointestinal Radiology, 2nd ed. Philadelphia, PA: WB Saunders Co; 2000:435-451.29)

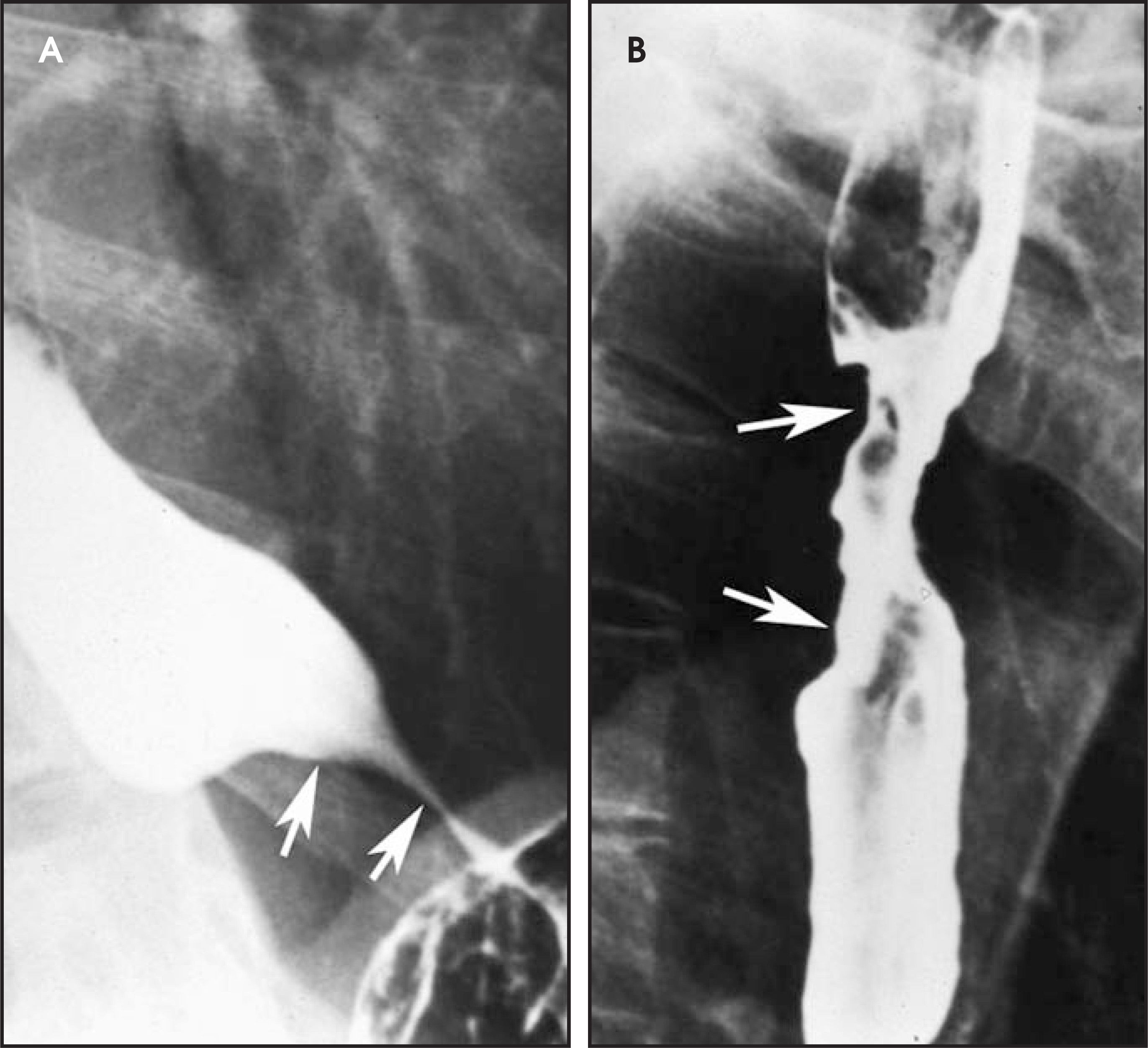

FIGURE 6.
FIGURE 6. Secondary achalasia caused by esophageal carcinoma. (A) An upright left posterior oblique view from an esophagram shows a 4-cm long eccentric, tapered narrowing (arrows) of the distal esophagus with only mild esophageal dilatation proximally. (B) An additional view of the proximal esophagus shows an annular carcinoma with relatively abrupt, shelf-like margins (arrows) in the upper thoracic esophagus. Tumor presumably spread via the mediastinal lymphatics to the gastroesophageal junction. (Images reprinted with permission from Woodfield CA, Levine MS, Rubesin SE, et al. Diagnosis of primary versus secondary achalasia: Reassessment of clinical and radiographic criteria. AJR Am J Roentgenol. 2000;175:727-731.10)

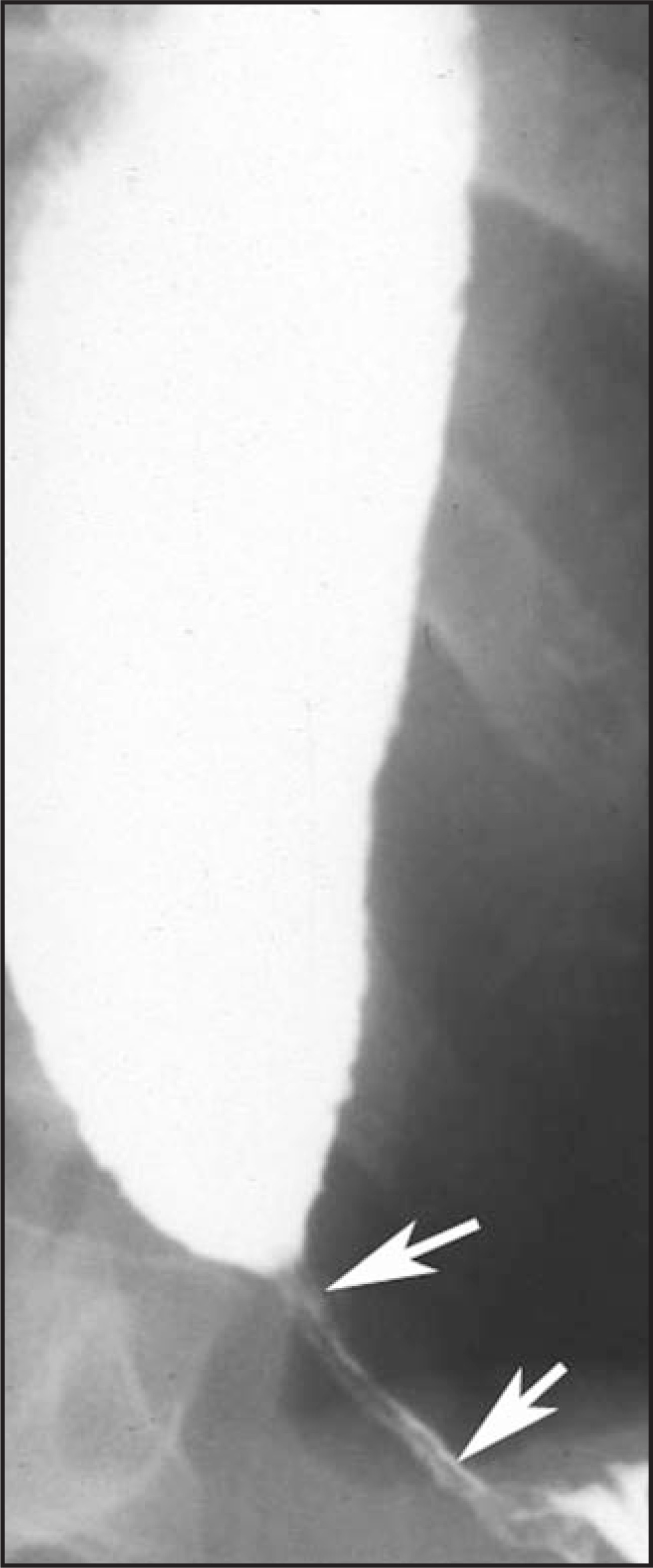

FIGURE 7.
FIGURE 7. Secondary achalasia caused by bronchogenic carcinoma. An upright left posterior oblique view from an esophagram shows a 5-cm long symmetric, tapered narrowing (arrows) of the distal esophagus with mild esophageal dilatation proximally. Note the fine irregularity of the contour of the distal esophagus above the narrowed segment as a result of superimposed Candida esophagitis that was proven at endoscopy. (Images reprinted with permission from Woodfield CA, Levine MS, Rubesin SE, et al. Diagnosis of primary versus secondary achalasia: Reassessment of clinical and radiographic criteria. AJR Am J Roentgenol. 2000;175: 727-731.10)

Computed tomography

Computed tomography (CT) may reveal asymmetric thickening of the distal esophageal wall, a soft tissue mass at the cardia, or mediastinal adenopathy in patients with secondary achalasia.30 In contrast, CT typically reveals little or no esophageal wall thickening and no evidence of a mass at the cardia in patients with primary achalasia.30-32 Therefore, CT may be extremely helpful in differentiating primary achalasia from secondary achalasia when the clinical or radiographic findings are equivocal. CT may also be helpful in identifying the site of the primary tumor or other evidence of metastatic disease in patients with secondary achalasia caused by remote neoplasms.

Diffuse esophageal spasm

Some investigators believe that DES is a distinct esophageal motility disorder characterized by intermittently abnormal esophageal peristalsis with normal function of the LES. However, others believe that it may progress over time to the classic form of achalasia with absent peristalsis in the body of the esophagus and impaired relaxation of the LES.33,34 It has been postulated that degeneration of the vagal nerve in the parasympathetic system is the common underlying pathway for the development of both DES and achalasia.34

Advertisement

Clinical findings

Patients with DES classically present with chest pain, dysphagia, or both.4,5 When patients with DES have chest pain because of high-amplitude esophageal contractions, drugs such as calcium-channel blockers, long-acting nitrates, and anticholinergics have been shown to decrease the amplitude of these contractions, sometimes ameliorating the patient’s symptoms.4 However, recent work has shown that dysphagia is a more common finding in patients with DES, at least partly because of the high frequency of LES dysfunction in these individuals (see discussion of manometric findings and radiographic findings in this article).35 Such patients may experience marked relief of dysphagia from endoscopic balloon dilatation of the LES or injection of the botulinum toxin at the gastroesophageal junction.35-37

Manometric findings

Diffuse esophageal spasm is characterized on manometry by intermittently abnormal primary peristalsis associated with a pattern of repetitive, simultaneous, ineffective contractions of varying amplitudes.4-6 However, manometric studies have also shown that DES is frequently associated with LES dysfunction and that more than one third of these patients have incomplete relaxation of the LES during swallowing.38 Another related condition, vigorous achalasia (see discussion of achalasia), may closely resemble DES with associated LES dysfunction on manometry, except that patients with vigorous achalasia have no episodes of normal peristalsis, whereas patients with DES have some episodes of normal peristalsis.11,12 In the past, some investigators have even questioned the existence of vigorous achalasia as a separate disease entity, instead hypothesizing that achalasia and DES represent opposite ends of a spectrum of related esophageal motility disorders, with vigorous achalasia occurring as a transitional phase between DES and achalasia.34

Radiographic findings

The classic description of DES on barium studies includes the presence of repetitive, simultaneous, lumen-obliterating nonperistaltic contractions that compartmentalize the esophagus, producing a distinctive “corkscrew,” “rosary bead,” or “shish kebab” appearance (Figure 8).16,17,39 In a recent study, however, lumen-obliterating nonperistaltic contractions were detected on barium studies in <15% of all patients with DES.35 Instead, most patients had nonperistaltic contractions of varying magnitude that did not obliterate the esophageal lumen (Figure 9). Thus, radiologists should recognize that the severity of nonperistaltic contractions can vary in patients with DES and that the absence of a “corkscrew esophagus” on barium studies in no way excludes this diagnosis.

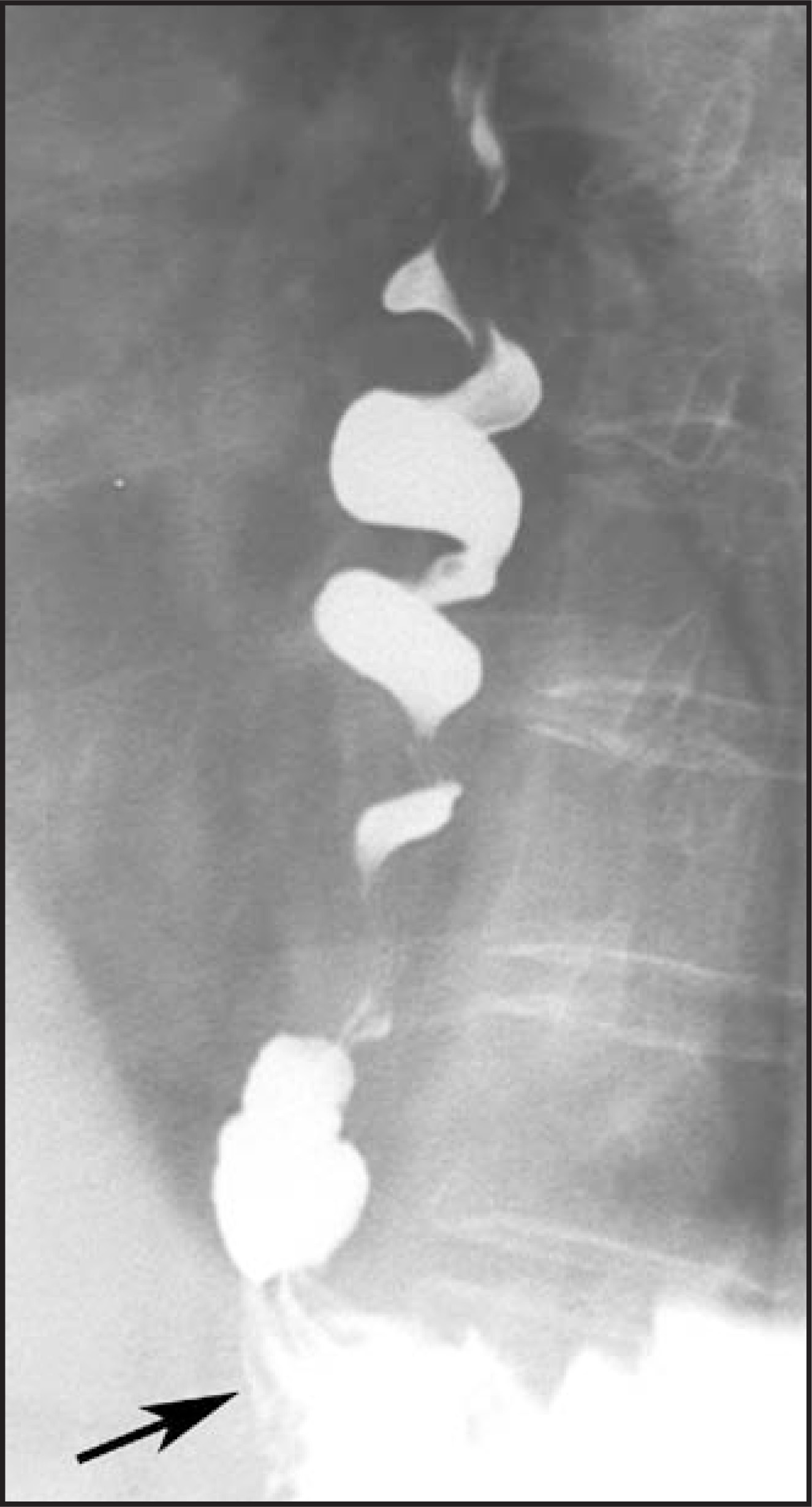

FIGURE 8.
FIGURE 8. Diffuse esophageal spasm. A prone view from an esophagram shows multiple lumen-obliterating nonperistaltic contractions, producing the classic “corkscrew” appearance. Note the small hiatal hernia (arrow). (Image reprinted with permission from Prabhakar A, Levine MS, Rubesin SE, et al. Relationship between diffuse esophageal spasm and lower esophageal sphincter dysfunction on barium studies and manometry in 14 patients. AJR Am J Roentgenol. 2004;183:409-413.35)

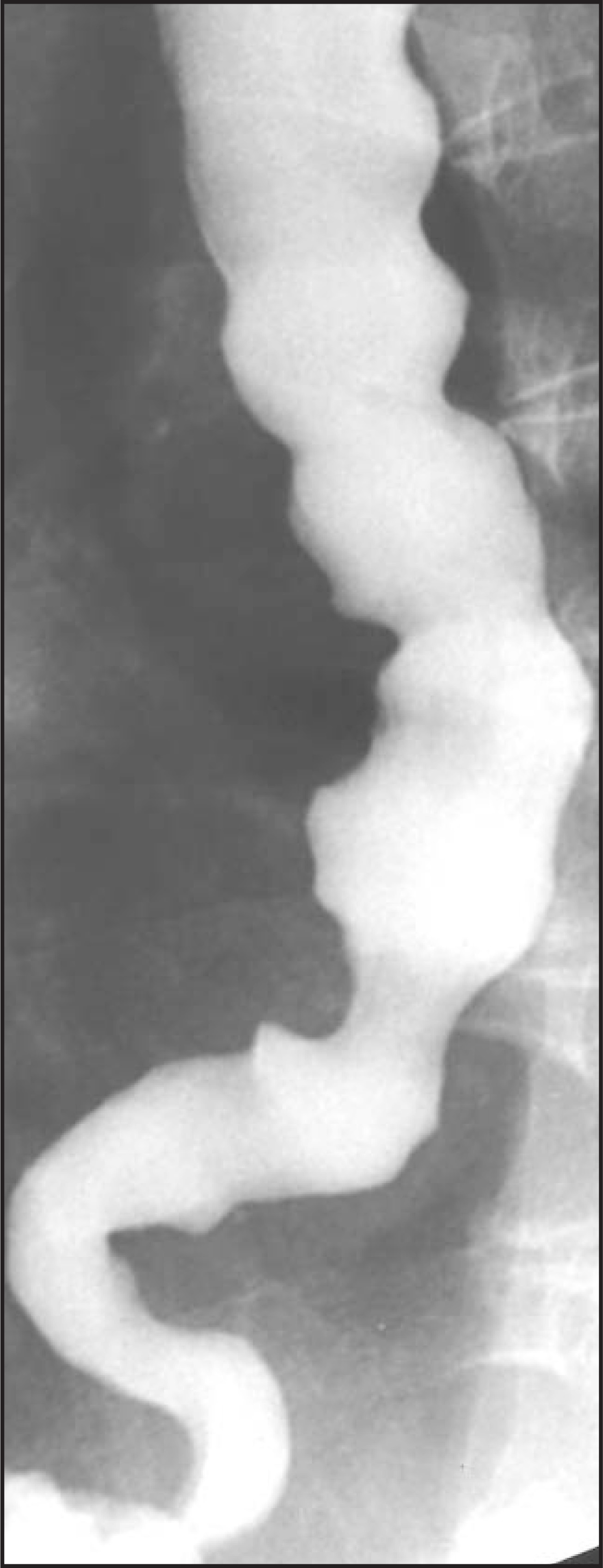

FIGURE 9.
FIGURE 9. Diffuse esophageal spasm. A prone right anterior oblique view from an esophagram shows multiple nonperistaltic contractions of mild-to-moderate severity without the classic “corkscrew” appearance. (Image reprinted with permission from Prabhakar A, Levine MS, Rubesin SE, et al. Relationship between diffuse esophageal spasm and lower esophageal sphincter dysfunction on barium studies and manometry in 14 patients. AJR Am J Roentgenol. 2004;183:409-413.35)

Although DES is not traditionally thought to be associated with LES dysfunction on barium studies,17,39 recent literature suggests that the majority of patients with DES have impaired LES opening on barium studies with the tapered, beaklike distal esophageal narrowing that is typically associated with achalasia (Figure 10).35 In a recent study, nearly two thirds of all patients with DES were found to have impaired LES opening on barium studies.35 Thus, it should be recognized that DES is characterized radiographically by frequent LES dysfunction with nonperistaltic contractions of varying severity, rather than a classic corkscrew appearance on barium studies.

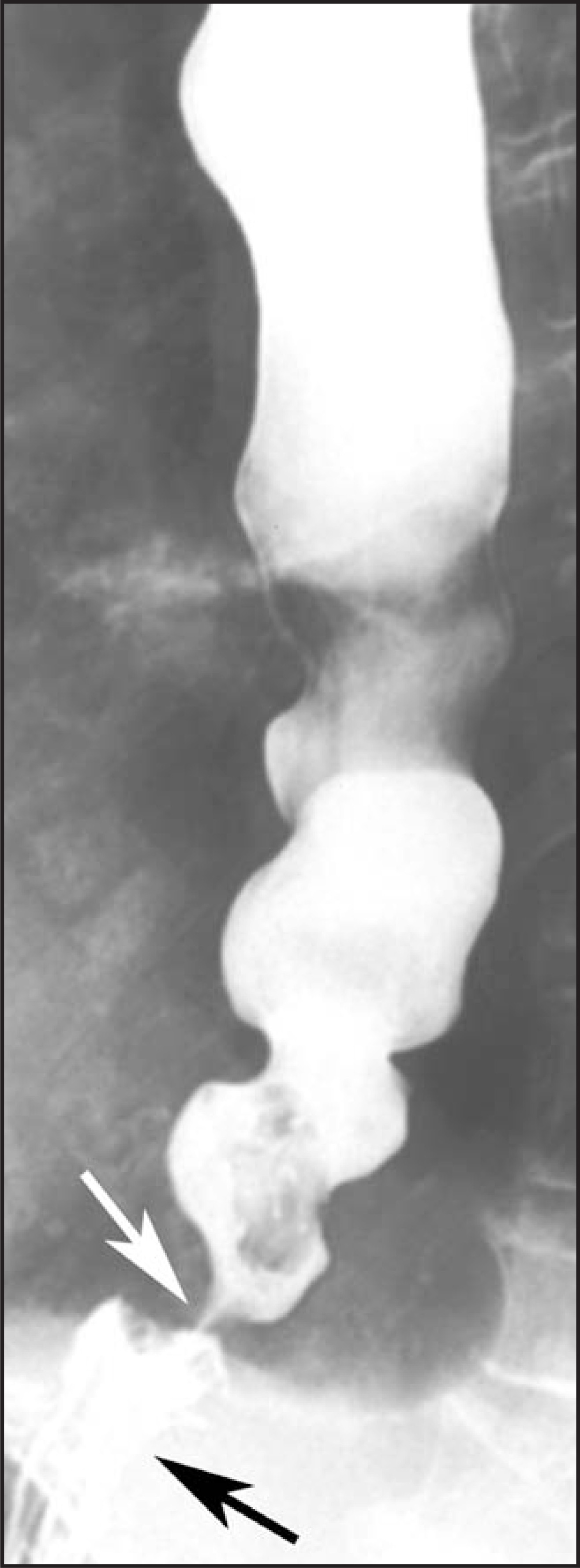

FIGURE 10.
FIGURE 10. Diffuse esophageal spasm with incomplete opening of the lower esophageal sphincter. Prone right anterior oblique view from an esophagram shows multiple nonperistaltic contractions of mild-to-moderate severity with beaklike narrowing (white arrow) of the distal esophagus above the hiatal hernia (black arrow). This patient presented with dysphagia.

Hiatal hernias appear to be more common in patients with DES and associated LES dysfunction than in those with achalasia (Figure 10). In one study, 89% of patients with DES and impaired opening of the LES had hiatal hernias on barium studies.35 Although hiatal hernias are uncommon in patients with achalasia, another study found an increased frequency of hiatal hernias in patients with achalasia who were >50 years of age.40 Thus, the higher frequency of hiatal hernias in patients with DES and LES dysfunction could be related to the older age of these individuals.

Barium studies versus manometry

Although there may be discordance between the findings on barium studies and manometry in the evaluation of DES, most patients with impaired opening of the LES on barium studies or incomplete relaxation of the LES on manometry who were treated with endoscopic balloon dilatation or botulinum toxin injections at the gastroesophageal junction have had a positive response to therapy.35 These data suggest that barium studies and manometry have complementary roles in the evaluation of patients with DES. Radiologists and gastroenterologists should be aware of the radiographic and manometric features of LES dysfunction in patients with DES, so they can guide proper treatment of these individuals.

Conclusion

Barium studies and manometry have complementary roles in the evaluation of achalasia and DES. Furthermore, these motor abnormalities should be considered opposite ends of a spectrum of related esophageal motility disorders, with many patients having combined radiographic and manometric features of achalasia and DES.
