Imaging sports-related elbow injuries

Applied Radiology — Vol. 44 , Issue 3 , pp. 7 -15

DOI: 10.37549/AR2167

Published: March 1, 2015

M. Cody O’Dell, MD, MPH, Joel Urena, MD, Dzmitry Fursevich, MD, Edward Sanchez, Gary LiMarzi, MD, Laura Bancroft, MD

Categories

article article Article

With increasing participation in organized sports, the incidence of sports-related injuries is on the rise in males and females of all ages. The elbow is one of the more commonly injured joints, especially in sports associated with throwing, swinging, or punching motions. Many sports-related injuries of the elbow are secondary to chronic overuse, which typically results from microscopic damage of tissues secondary to chronic submaximal loading.1,2 Elbow injuries are also common in myriad sports where participants experience blunt trauma or falls onto an outstretched hand. Knowledge of the patient’s age is important to understanding the prevalent injuries in adults, adolescents and children. Pediatric patients are more prone to a specific subset of injuries, given their unique anatomy and intensity of training in sports such as baseball and gymnastics.2-4 Adults also have a high incidence of elbow injuries related to sports, although the etiologies and mechanisms are slightly different.

Imaging modalities

Radiography remains the best initial imaging approach for evaluating elbow pain: anteroposterior (AP), lateral, and internal and external rotation views are considered standard.5 Radiographs are effective in demonstrating fractures, dislocations, joint effusion/hemarthrosis and soft tissue swelling. Although radiographs are essential in the initial workup of musculoskeletal injury, cross-sectional imaging may occasionally be sought to further define the extent of injury.1,5

Sonography is a relatively inexpensive, portable and widely available means to evaluate the elbow. Sonography is useful in evaluating the elbow in athletes, particularly when it comes to assessing ligamentous and tendinous injuries, and identifying effusions.6 Sonography is gaining more widespread acceptance as a primary musculoskeletal imaging modality, is best performed by experienced operators, and is helpful in guiding percutaneous therapeutic injections.7

Computed tomography (CT) may be indicated in evaluating complex osseous injury after initial radiographs. CT arthrography after intraarticular injection of iodinated contrast is an alternative to MRI and sonography in assessing tendons and ligaments.8 Images are obtained in the axial plane with 2D sagittal and coronal and 3D surface rendered reconstructions available for surgical planning. Disadvantages of CT include ionizing radiation to the patient as well as suboptimal characterization of soft tissue pathology compared to MRI.

Magnetic resonance imaging (MRI) has emerged as the imaging modality of choice for evaluation of elbow pain in athletes.8 MR imaging provides excellent spatial resolution and soft tissue contrast, and can detect subtle pathology in the soft tissues and bone marrow. Images are typically obtained in axial, coronal oblique and sagittal oblique planes relative to the transepicondylar axis. Standard sequences include T1-weighted, proton density (PD) and T2-weighted images with fat suppression (FS). 2D or 3D gradient echo sequences can be used to better visualize the cartilage, and allow an infinite number of reconstructions when volumetrically acquired.8 Imaging field-of-view should be about 12 cm and extend from the distal humerus to the bicipital tuberosity of the radius, and a dedicated elbow coil should be used for optimal spatial resolution.9 Patients can be positioned in the MR scanner in either the “superman position” (arm above head with elbow in the center of the bore), or supine with the elbow positioned at the side. The superman position provides superior field homogeneity, but can only be utilized if the patient can tolerate this position without moving.10 MR arthrography is selectively performed for increased accuracy in detecting ulnar collateral ligament tears, osteochondral defects and intraarticular bodies.11,12 MRI disadvantages include increased scan times and relatively high cost compared to other imaging modalities.

Soft-tissue injuries

Tennis elbow

Tendon pathology involving the common extensor tendon origin is the most common cause of elbow pain and/or disability, and is much more common than tendinous injury of the common flexor tendon origin. “Tennis elbow,” “lateral epicondylosis” and “lateral epicondylitis” are synonymous terms for this degenerative process caused by repetitive microtrauma; however, most afflicted patients do not play tennis, and epicondylitis is a misnomer since this entity is not caused by inflammatory change.13 Tennis elbow is usually seen in the 4th or 5th decade of life with equal prevalence among men and women.13,14 Although classically associated with racket sports like tennis, most patients with this disease have never played tennis. Patients present clinically with pain and point tenderness overlying the lateral epicondyle and pain with resisted wrist extension (Cozen’s sign).14

Tennis elbow is a clinical diagnosis and typically does not necessitate imaging. Findings include thinning, partial tearing or avulsion of the common extensor tendon origin at the lateral epicondyle.13 Partial tears of the lateral ulnar collateral ligament may also be found in conjunction with common extensor tendon tears in more advanced cases.13,14 Sonography or MR imaging may be obtained in cases of refractory elbow pain in patients who fail conservative treatment measures, in order to exclude other causes of chronic elbow pain such as lateral collateral ligamentous injury. The common extensor tendon is optimally imaged with sonography with the elbow flexed and forearm pronated. Transverse and longitudinal images should be obtained from the tendinous insertion to the extensor carpi radialis (ECRB) myotendinous junction. Thickening and heterogeneity are signs of tendinosis, whereas with a partial- or full-thickness tear there will be evidence as anechoic, fluid-filled tendinous gaps. Varying degrees of hyperemia can be seen with Doppler imaging, representing inflammation associated with the reparative process.14,15 Furthermore, ultrasound-guided therapies for tennis elbow and other tendinopathies have become more widespread. Percutaneous treatments include dry needling, as well as injection of steroids, platelet-rich plasma (PRP), autologous conditioned plasma and whole blood.16,17 Tendinosis of the common extensor tendon will be evident on MRI as thickening and intermediate T1- and T2-weighted signal intensity, whereas partial- or full-thickness tears will demonstrate fluid signal within the discontinuous portion of the tendon (Figure 1).18,19

FIGURE 1.

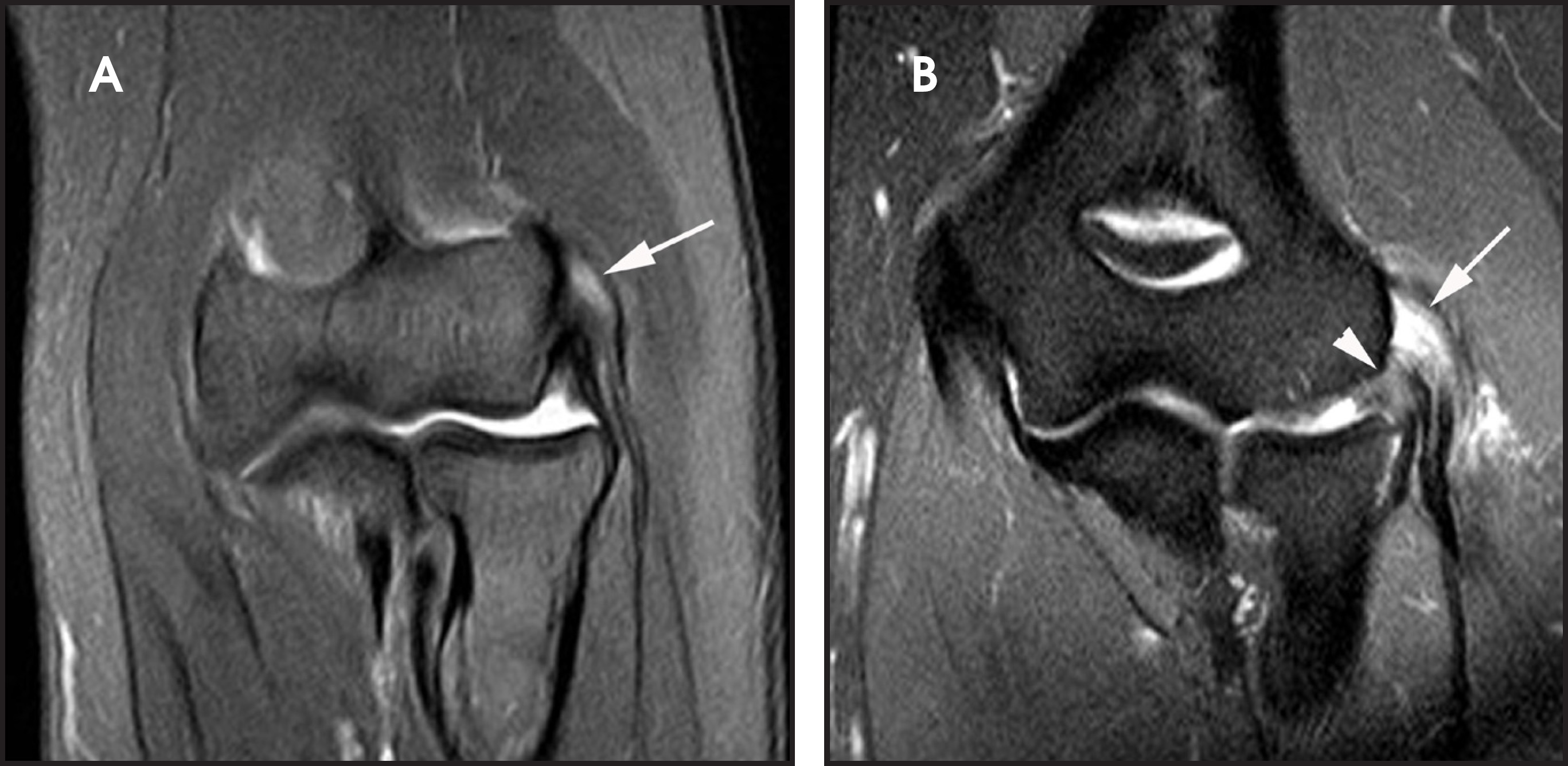

FIGURE 1. Tennis elbow. (A) Coronal fast spin echo (FSE) FSE proton density (PD) fat-suppressed (FS) image in a 47-year-old woman with lateral elbow pain demonstrates intermediate signal intensity in the thickened common extensor tendon origin (arrow), consistent with tendinosis. (B) Coronal FSE proton density FS image in a different 47-year-old woman shows high-grade partial-thickness tearing of the common extensor tendon origin (arrow), as well as partial-thickness tearing of the proximal portion of the radial collateral ligament proper (arrowhead).

Injuries to the radial collateral ligament (RCL) complex can occur in conjunction with advanced cases of tennis elbow as well as sports-related trauma leading to posterolateral rotary subluxation of the elbow.20-23 The radial collateral ligament complex is comprised of the radial collateral ligament proper, the lateral ulnar collateral ligament and annular ligament. Of these, the LUCL is the most important in stabilization and dynamic sonographic evaluation and MRI can be useful in its evaluation.20,21-23 Tears of the lateral ulnar collateral ligament usually occur at the humeral origin, and will be evident as discontinuous fibers with surrounding edema or hemorrhage. Of note, failure to recognize lateral ulnar collateral ligament (LUCL) tears prior to surgical treatment of tennis elbow will lead to persistent postoperative symptoms.

Golfer’s elbow

Common flexor-pronator tendon origin pathology in middle-aged and older individuals is also referred to as golfer’s elbow. This entity is characterized by repetitive overuse and microtearing of the flexor-pronator tendons, with progressive degeneration due to an immature reparative response.18 This disease typically occurs in the fourth and fifth decades of life, is 7-10 times less common than tennis elbow, and commonly affects golfers, bowlers, swimmers, tennis players, and throwing athletes.18 Clinically, patients present with insidious medial elbow pain and weakness in grip strength.19,24

Sonography and MRI can confirm the diagnosis in patients with refractory medial elbow pain and exclude other etiologies. Sonography demonstrates an enlarged and hypoechoic common flexor tendon origin in the presence of tendinosis, whereas MR imaging depicts thickening and intermediate signal intensity of the common flexor-pronator muscle group (Figure 2).25 The ulnar collateral ligament should also be carefully evaluated, since UCL tears may be associated with refractory cases of golfer’s elbow due to persistent instability. Finally, chronic focal stress at the common flexor tendon origin can lead to medial traction enthesophytes.24,25

FIGURE 2.

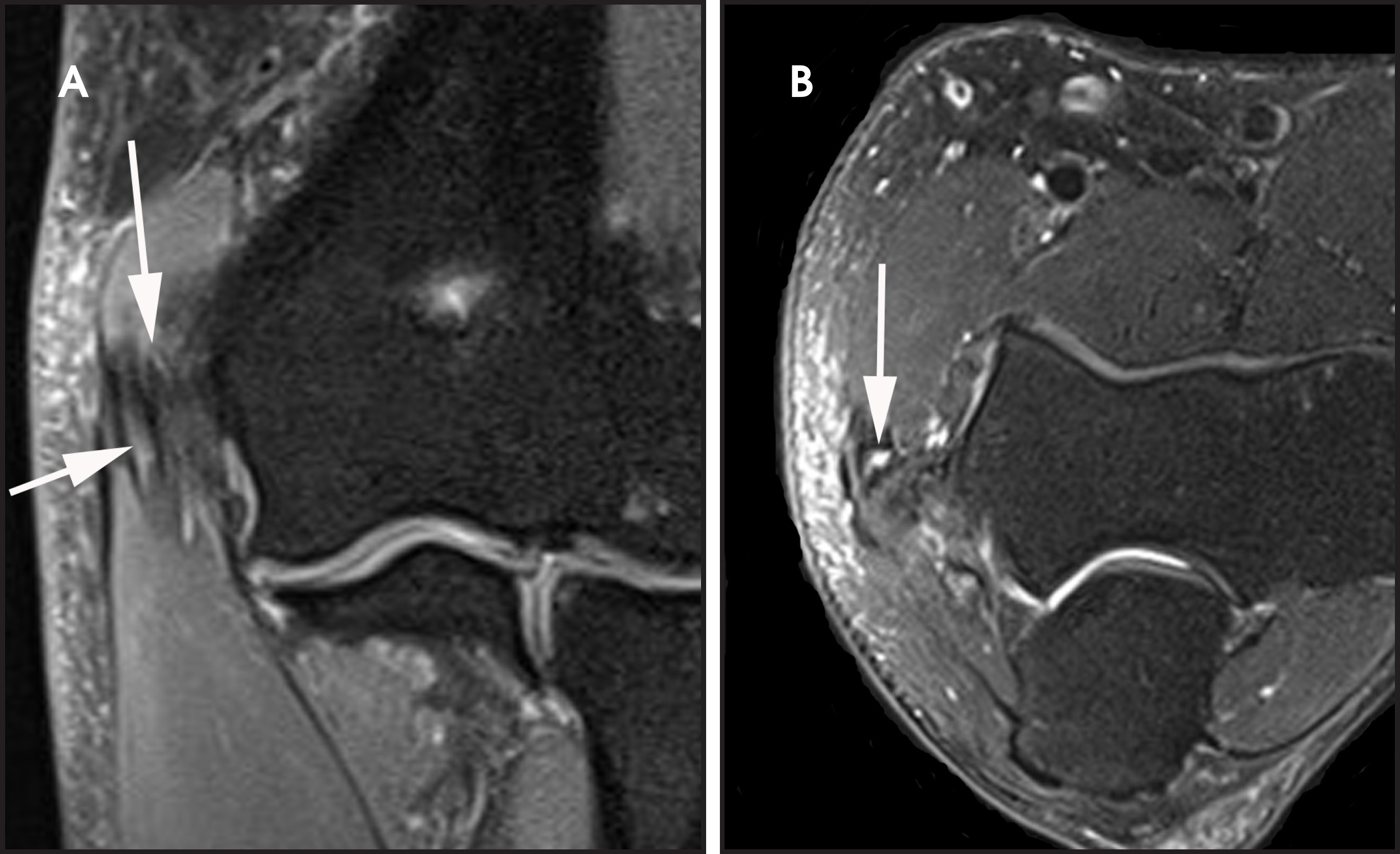

FIGURE 2. Partial-thickness tear of the common flexor tendon origin in a 54-year-old man. Coronal FSE PD FS (A) and axial FSE T2-weighted FS (B) images show thickening and low-grade, partial-thickness tearing (arrows) of the common flexor tendon origin.

Advertisement

Pitcher’s elbow

Forces upon the elbow are most marked during the acceleration phase of throwing, and can result in medial tension overload, lateral compression and extension overload. Medial elbow pain caused by excessive valgus forces and high pitching velocities can occur in overhead throwing athletes of all ages. Usually due to excessive pitch counts or poor technique, up to 20% of baseball pitchers between the ages of 9 and 15 will experience elbow pain at some point.4 Injury to the ulnar collateral ligament, also known as the medial collateral ligament, is a common cause of medial elbow pain and valgus instability in athletes. The UCL is made of anterior, transverse and posterior bundles, and is most often injured following acute or recurrent valgus stress of the elbow.26,27 Injuries have been documented in baseball and American football players (especially pitchers and quarterbacks), track and field athletes (particularly javelin throwers), and those who play volleyball, golf and polo.28

There are several modalities which can be used to image the ulnar collateral ligament including radiography, sonography, CT arthrography and MRI. Stress radiography can demonstrate widening of the ulnohumeral joint, and heterotopic ossification of the UCL can be seen with chronic injuries. Sonography may demonstrate hypoechoic and thickened ligaments with tendinosis, as well as classic findings for partial or complete ligamentous disruption. MRI may demonstrate increased T2-weighted signal within the ligament (commonly within the anterior band) or hyperintensity within the sublime tubercle (Figure 3). Insinuation of arthrographic contrast into articular sided tears may occur anywhere along the tendon and may result in a “T sign” when contrast extends in the interval between the sublime tubercle and stripped ligamentous attachment; complete rupture will show extravasation of contrast through the ligamentous defect.25,28

FIGURE 3.

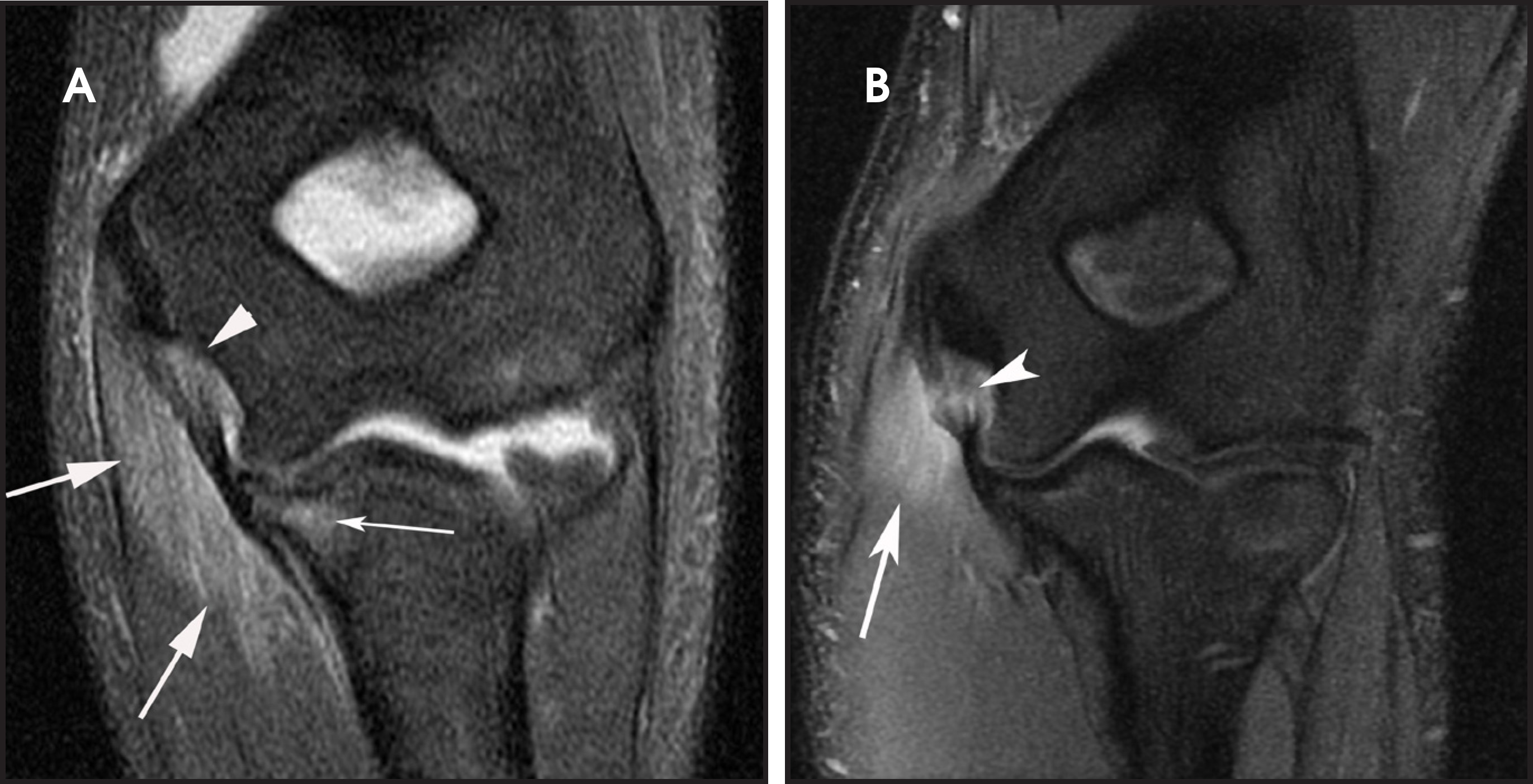

FIGURE 3. Partial-thickness tears of the ulnar collateral ligament and pronator strain in 14 and 25-year-old pitchers. (A and B) Coronal FSE PD FS images show thickening and increased signal intensity within the anterior bundle of the ulnar collateral ligament (arrowheads), more marked in the 25-year-old pitcher. Feathery, edema-like signal changes in the proximal pronator muscle (large arrows) are due to grade 1 muscle strain. Note the edema in the sublime tubercle (small arrow) in (A).

Preoperative MR imaging has been shown to predict rehabilitation outcomes of UCL injuries in baseball players, and postoperative MRI is helpful when difficulties arise.29 Reconstruction of the UCL has been famously named “Tommy John” surgery, and complications from surgery include avulsion fractures of the medial epicondyle, graft degeneration and tearing.30,31 Avulsion fractures and stress reaction of the medial epicondyle at the origin of the UCL and the sublime tubercle at the insertion of the UCL have also been described in throwing athletes and gymnasts, and will be discussed later.32,33

Biceps tendon pathology

The biceps brachii tendon is vital for flexion and supination of the upper extremity, and spans both the shoulder and elbow joints.34 For this reason, biceps tendon pathology is usually separated into proximal (ie, shoulder) and distal (ie, elbow) components. Biceps tendon injuries are associated with sports, especially those that involve throwing, forced elbow flexion or overhead activities. Injuries of the distal biceps are much less common than those of the proximal biceps, accounting for approximately 3% of the biceps tendon injuries.35,36 Football players, weightlifters and bodybuilders have the highest prevalence of distal biceps tendon injuries, and risk further increases in men, smokers and those using anabolic steroids.34-38

It is important to diagnose biceps tendon tear early, as a surgical delay can lead to chronic weakness. Evaluation of the biceps tendon can be accomplished with sonography or MRI. Sonographically, the distal biceps tendon is imaged by placing the ultrasound probe in the antecubital fossa with the elbow extended and the forearm supinated (36. Injuries of the distal biceps tendon usually occur near the insertion onto the radial tuberosity, are more commonly partial thickness and can involve either the long or short head.39 MR imaging is useful in presurgical planning of full-thickness tears, and the radiologist should report the degree of proximal retraction and the quality of the tendinous remnant (Figure 4).38-40 Of note, the tendon rarely retracts significantly into the arm because it is partially tethered by the bicipital aponeurosis, also known as the lacertus fibrosis.

FIGURE 4.

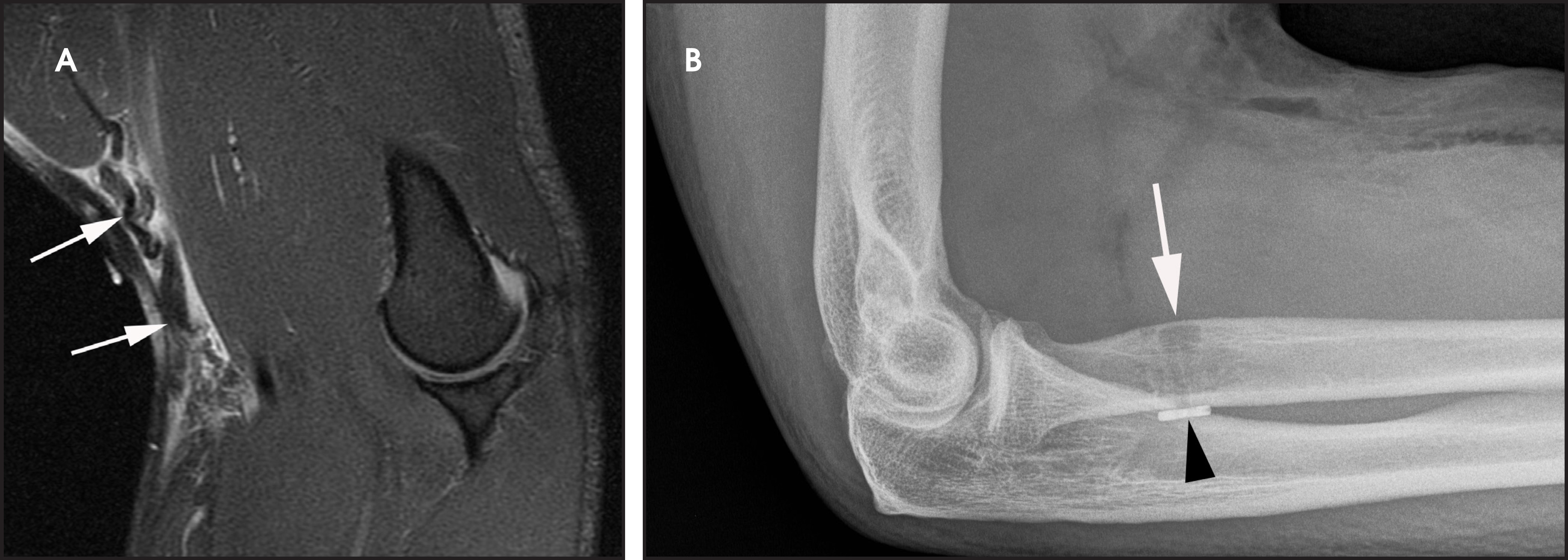

FIGURE 4. Distal biceps tendon rupture and reattachment. (A) Sagittal FSE T2-weighted FS image in a 35-year-old man delineates proximal retraction of the serpentine tendinous remnant of the distal biceps tendon (arrows) and surrounding hemorrhage. (B) Lateral radiograph of a 50-year-old man after biceps reattachment shows a button (arrowhead) and bioscrew within the osseous tunnel (arrow) drilled through the radial tuberosity.

Triceps tendon pathology

Injuries of the triceps tendon are exceptionally rare, with a reported prevalence of between 1% and 3.8%.41 Triceps tendon tears usually occur near the insertion onto the olecranon and are often related to an acute traumatic event. Injuries have been reported with weightlifting, American football, soccer and rugby. Patients often present clinically with swelling of the posterior elbow following a fall on an outstretched hand.41-43 On radiography, triceps tendon rupture will present with soft tissue swelling overlying the olecranon and, occasionally, a small olecranon avulsion fragment (Figure 5). Sonography can assess the integrity of the triceps tendon, avulsion fractures and any associated fluid collections or olecranon bursitis. Morphologic and signal intensity changes of the triceps tendon are similar to those of other tendons as previously described.38,45 Triceps tendon rupture can be partial or complete, can range from millimeters to centimeters in width, and almost always involve the lateral head insertion. MRI may provide added value due to the association of radial head fracture, capitellar fracture and ulnar collateral ligament rupture with triceps injuries (Figure 5).44,45

FIGURE 5.

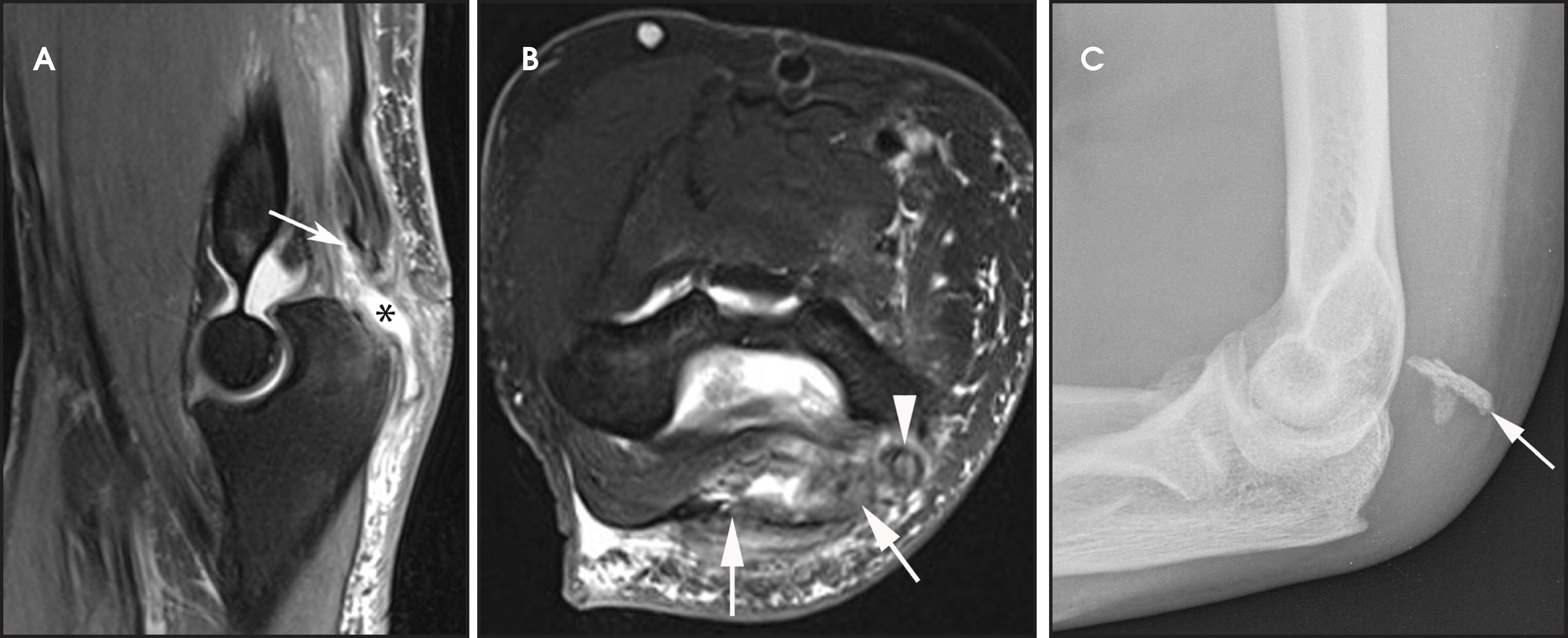

FIGURE 5. Triceps tendon tear and olecranon avulsion fractures. (A) Sagittal FSE PD FS image through the elbow of a 53-year-old woman who sustained a fall shows retraction of the ruptured portion of the triceps tendon (arrow) from its attachment onto the olecranon. Small hematoma (asterisk) communicates with the olecranon bursa. (B) Axial FSE T2-weighted FS image in the same patient shows the medial-to-lateral extent of the triceps rupture (arrows) as well as enlargement and edema within the adjacent ulnar nerve (arrowhead).(C) Lateral radiograph in a 32-year-old woman shows a proximally retracted olecranon avulsion fracture (arrow) at the attachment of the triceps tendon. Radial head fracture was also present.

Olecranon bursitis

The olecranon bursa is a fluid filled sac-like structure that acts as a cushion, allowing the posterior skin of the elbow to glide past the olecranon process with minimal friction.46,47 Inflammation of the olecranon bursa commonly occurs in athletes who participate in sports that require repetitive elbow extension and flexion such as baseball, swimming and weight lifting.46 Direct trauma to the posterior elbow from falling on a hard surface such as hardwood, ice, or turf can also cause the olecranon bursa to become inflamed.46 The clinical presentations of olecranon bursitis can range from a minor painless fluctuant mass to a painful erythematous swelling that limits elbow mobility.46 Lateral radiographs may delineate the extent of soft tissue swelling overlying the olecranon process.47 Sonography may reveal a hypoechoic, fluid-filled bursa, and MRI will demonstrate hypointense T1- weighted fluid with variable signal intensity on T2-weighted sequences (Figure 6).46-48

FIGURE 6.

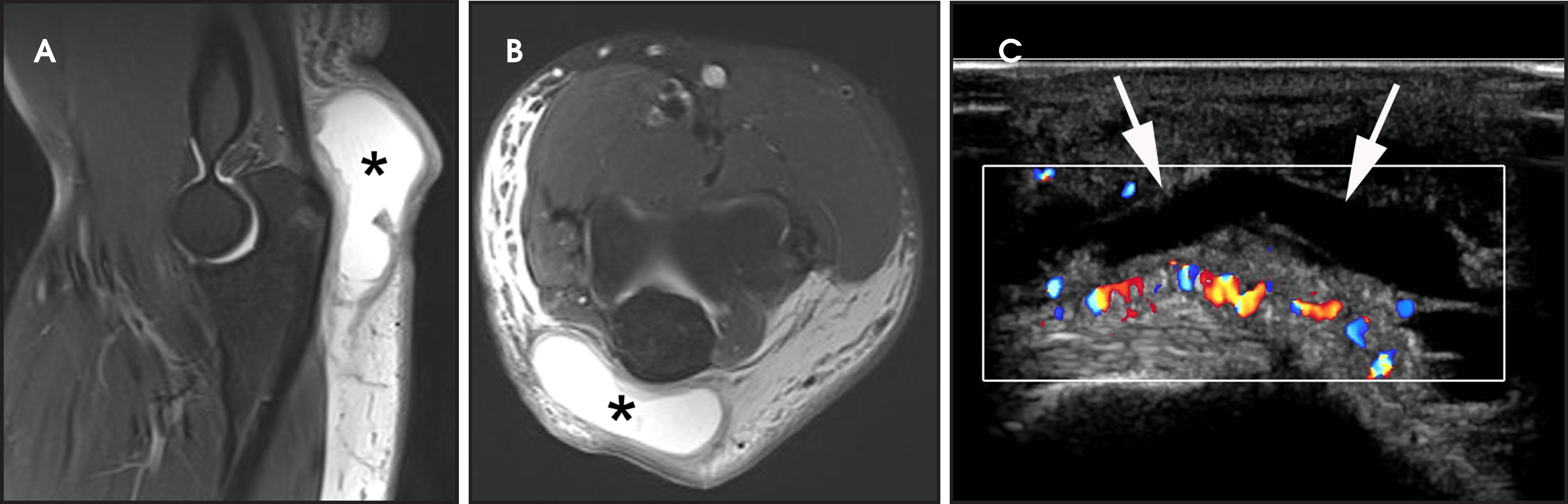

FIGURE 6. Olecranon bursitis on MRI and sonography. Sagittal (A) and axial (B) FSE T2-weighted images through the elbow in a 29-year-old man after sports-related fall show fluid distension of the olecranon bursa (asterisks) and posterior elbow and forearm subcutaneous soft tissue swelling. Color Doppler sonogram (C) in the longitudinal plane in a different patient shows anechoic fluid in the distended olecranon bursa (arrows) and adjacent color flow from soft tissue hyperemia.

Cubital tunnel syndrome

Nerve entrapment and compression syndromes of the elbow include cubital tunnel syndrome, radial tunnel syndrome, posterior interosseous nerve syndrome, anterior interosseous nerve syndrome and pronator syndrome.49 Cubital tunnel syndrome is the most common entrapment neuropathy of the elbow, and has several etiologies including throwing sports, tennis, and volleyball.28 Traction injuries to the ulnar nerve can occur secondary to the dynamic valgus forces of throwing. Compression of the ulnar nerve within the cubital tunnel can occur secondary to direct trauma, repetitive stresses or replacement of the overlying retinaculum with an anomalous anconeus epitrochlearis muscle, which is found in 11% of the population.5,10,50 Recurrent subluxation of the nerve due to acquired laxity from repetitive stress or trauma can lead to friction neuritis. Finally, osseous spurring within the ulnar groove caused by overuse and posteromedial impingement in throwers can cause nerve irritation.51 Ulnar nerve thickening and increased T2-weighted signal are typical MRI features of cubital tunnel syndrome (Figure 7). Edema-like signal changes or atrophy of the flexor carpi ulnaris and flexor digitorum profundus muscles may also be secondary to ulnar neuropathy.49

FIGURE 7.

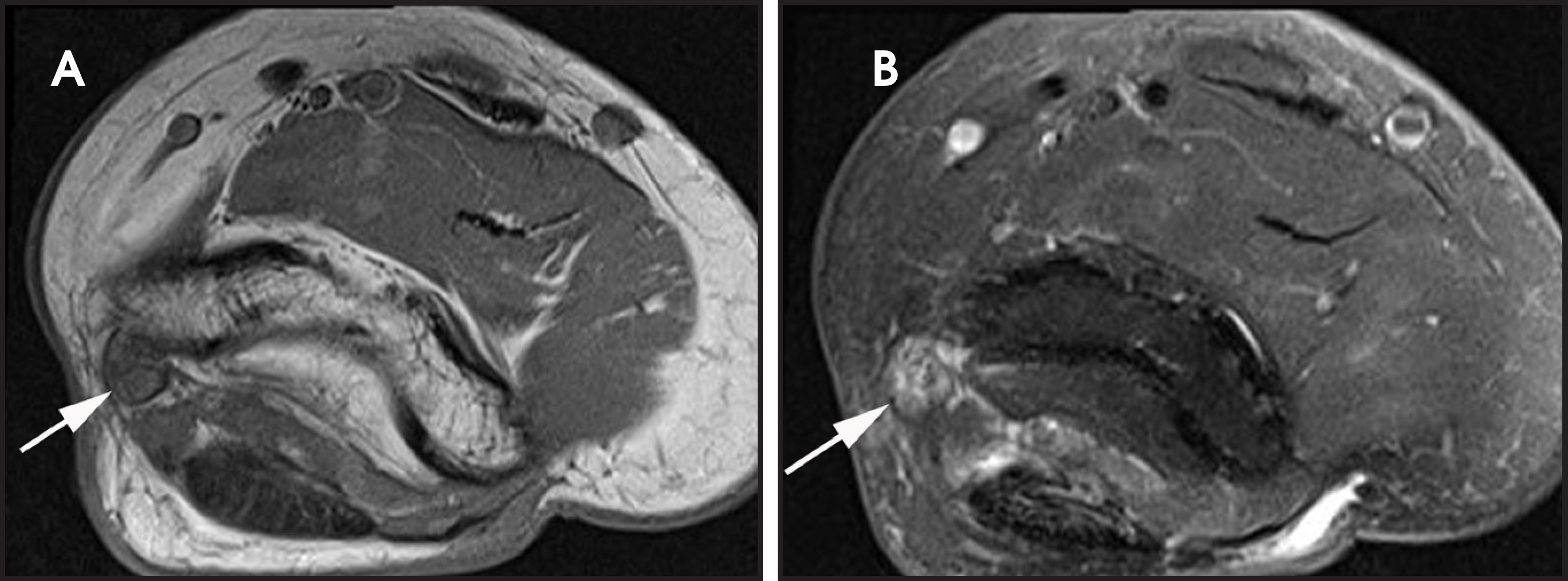

FIGURE 7. Ulnar neuritis in 56-year-old woman with pain and weakness in the left hand and arm. Axial T1-weighted (A) and T2-weighted (B) images obtained at the level of the proximal cubital tunnel demonstrate an enlarged, T2-hyperintense ulnar nerve (arrows), consistent with ulnar neuritis.

Advertisement

Radial nerve entrapment

Radial nerve entrapment at the elbow can be subdivided into two major categories: radial tunnel syndrome and posterior interosseous nerve syndrome (PINS).49 The posterior interosseous nerve is a deep branch of the radial nerve in the forearm that can be compressed from repetitive gripping combined with supination in weight lifters and swimmers. The superficial head of the supinator muscle along the arcade of Frohse is the most common site of nerve entrapment, where a thick fibrous band may exist along the arcade of Frohse.49 It is important to note that a small percentage of radial neuropathy cases have associated lateral elbow symptoms related to common extensor tendon pathology.49 MR imaging manifestations of PINS includes thickening and increased T2 signal of the nerve fibers, as well as edema-like signal changes in the innervated extensor compartment musculature in the acute and subacute setting, and atrophy in the chronic stages (Figure 8).

FIGURE 8.

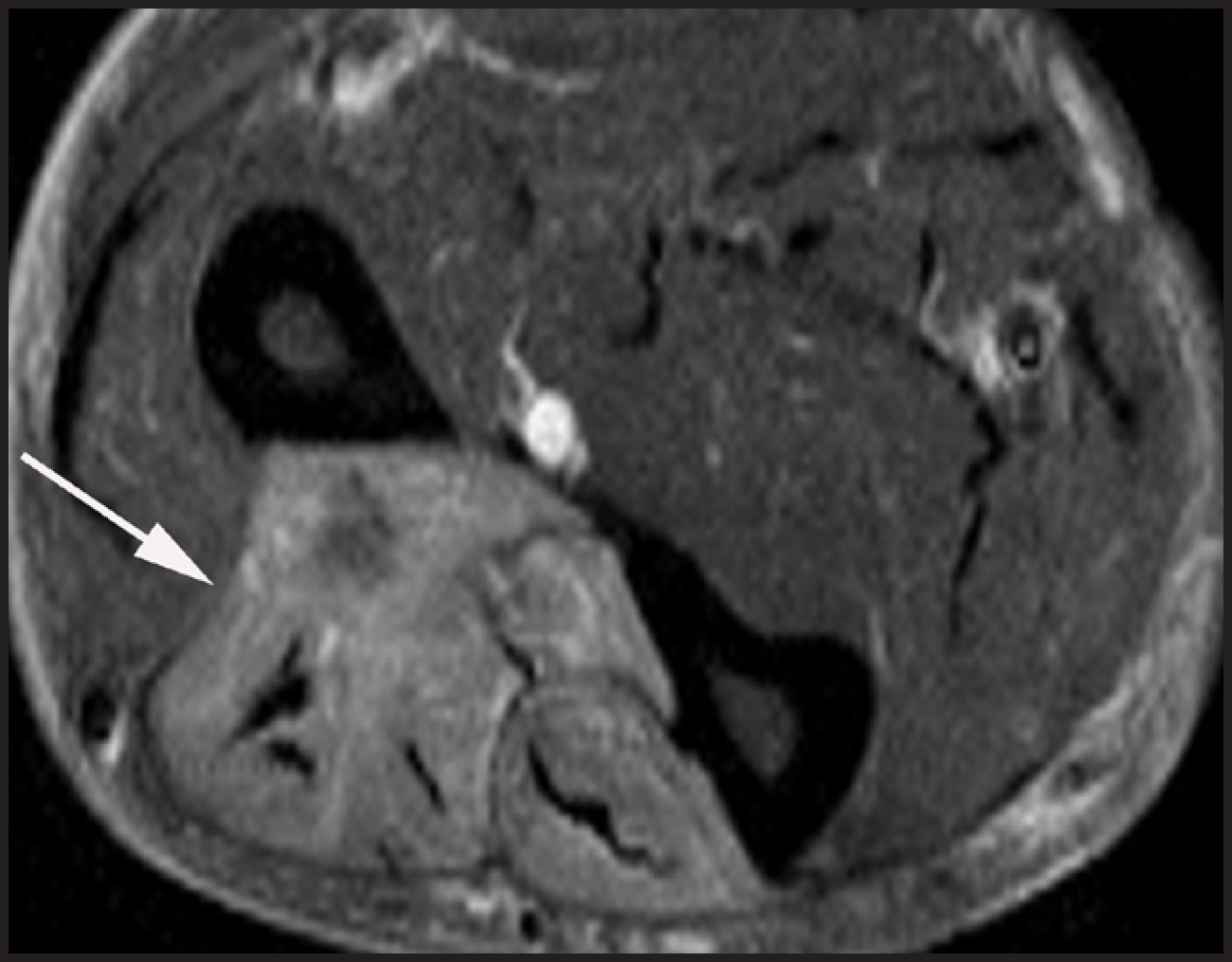

FIGURE 8. Posterior interosseous nerve syndrome. Axial FSE T2-weighted FS image through the proximal forearm demonstrates edema-like signal changes throughout the extensor musculature (arrow), reflecting denervation changes in the distribution of the posterior interosseous nerve. Findings can be seen in weight lifters and swimmers.

Osseous trauma

Medial epicondyle apophysitis and avulsion injuries

Medial elbow pain is a common complaint in Little League baseball players between the ages of 9 and 12 years, and is often secondary to stresses placed upon the epicondylar apophysis. In skeletally immature patients, the UCL is much stronger than the apophyseal growth plate. Therefore, varying degrees of fragmentation and separation of the medial epicondyle at the apophysis can occur in the setting of chronic valgus stress (Figure 9). Clinical findings include medial elbow pain after throwing without valgus instability.52 Medial epicondylar apophyseal hypertrophy with fragmentation and apophyseal separation can be seen in symptomatic patients on radiographs and sonography, although one study has demonstrated this finding in asymptomatic patients as well.53 MR imaging may demonstrate increased T2-weighted signal in the medial apophysis and within or around the common flexor tendon (Figure 9).54

FIGURE 9.

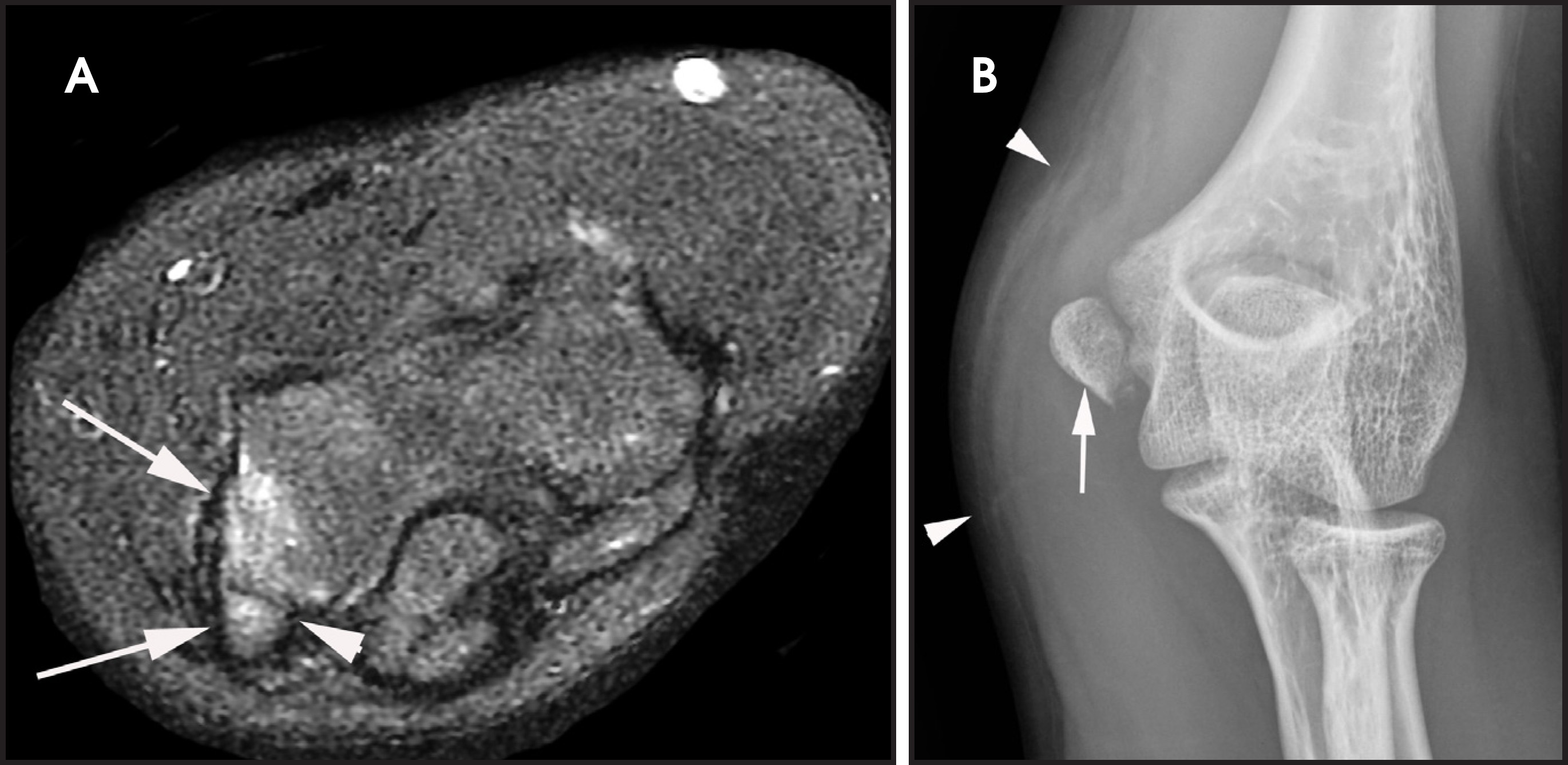

FIGURE 9. Medial epicondyle apophyseal stress injuries. (A) Axial T2-weighted image through the elbow of a 14-year-old male baseball pitcher delineates marrow edema-like signal changes (arrows) about the medial epicondylar apophysis (arrowhead), consistent with apophysitis. (B) AP radiograph of the elbow in a 12-year-old gymnast demonstrates mildly displaced avulsion fracture of the medial humeral epicondyle (arrow) with adjacent soft tissue swelling (arrowheads).

Sublime tubercle stress fracture

Avulsion fractures of the sublime tubercle of the ulna have been reported in throwing athletes with chronic medial elbow pain, although these are much less common than injuries to the ulnar collateral ligament complex.32,33 Sublime tubercle fractures and stress responses occur near the attachment of the ulnar collateral ligament and are caused by repetitive valgus elbow force. MRI will show an intact ulnar collateral ligament, with the point of failure being the osseous fracture (Figure 10).

FIGURE 10.

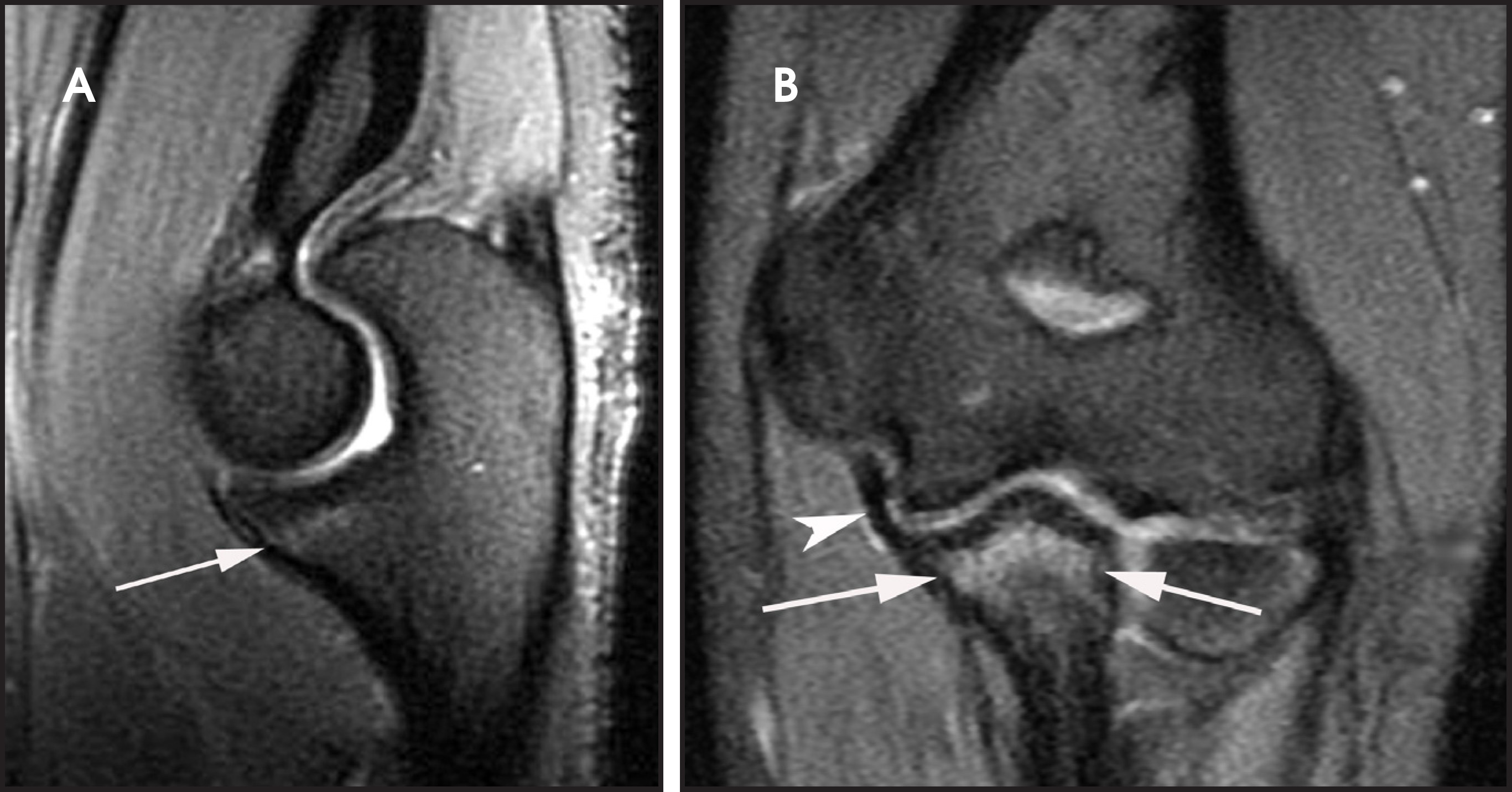

FIGURE 10. Sublime tubercle avulsive stress injury in a 15-year-old female softball player. Sagittal (A) and coronal (B) FSE PD FS images show linear hyperintense signal along the sublime tubercle (arrows), adjacent to the attachment of the anterior band of the ulnar collateral ligament (arrowhead), consistent with avulsive stress injury.

Advertisement

Olecranon stress fractures

Olecranon stress fractures caused by chronic impingement and shear forces in the posterior compartment are most commonly encountered in throwing athletes. Repetitive valgus stress on the elbow in the late stages of throwing combined with rapid elbow extension result in olecranon micro-trauma. Repetitive excessive forces may eventually lead to olecranon stress fractures propagating from the structural weak point in the trochlear groove, and may be detected on radiographs as transverse or oblique in orientation, with or without sclerotic changes.55 MR imaging is reserved for cases where radiographs are inconclusive, and will unequivocally establish the diagnosis by demonstrating the fracture line and associated bone marrow edema (Figure 11). Initial treatment of olecranon stress fractures consists of rest and temporary splinting. Surgical management with screw fixation may be preferable in order to achieve early union in elite athletes and avoid prolonged immobilization.56,57

FIGURE 11.

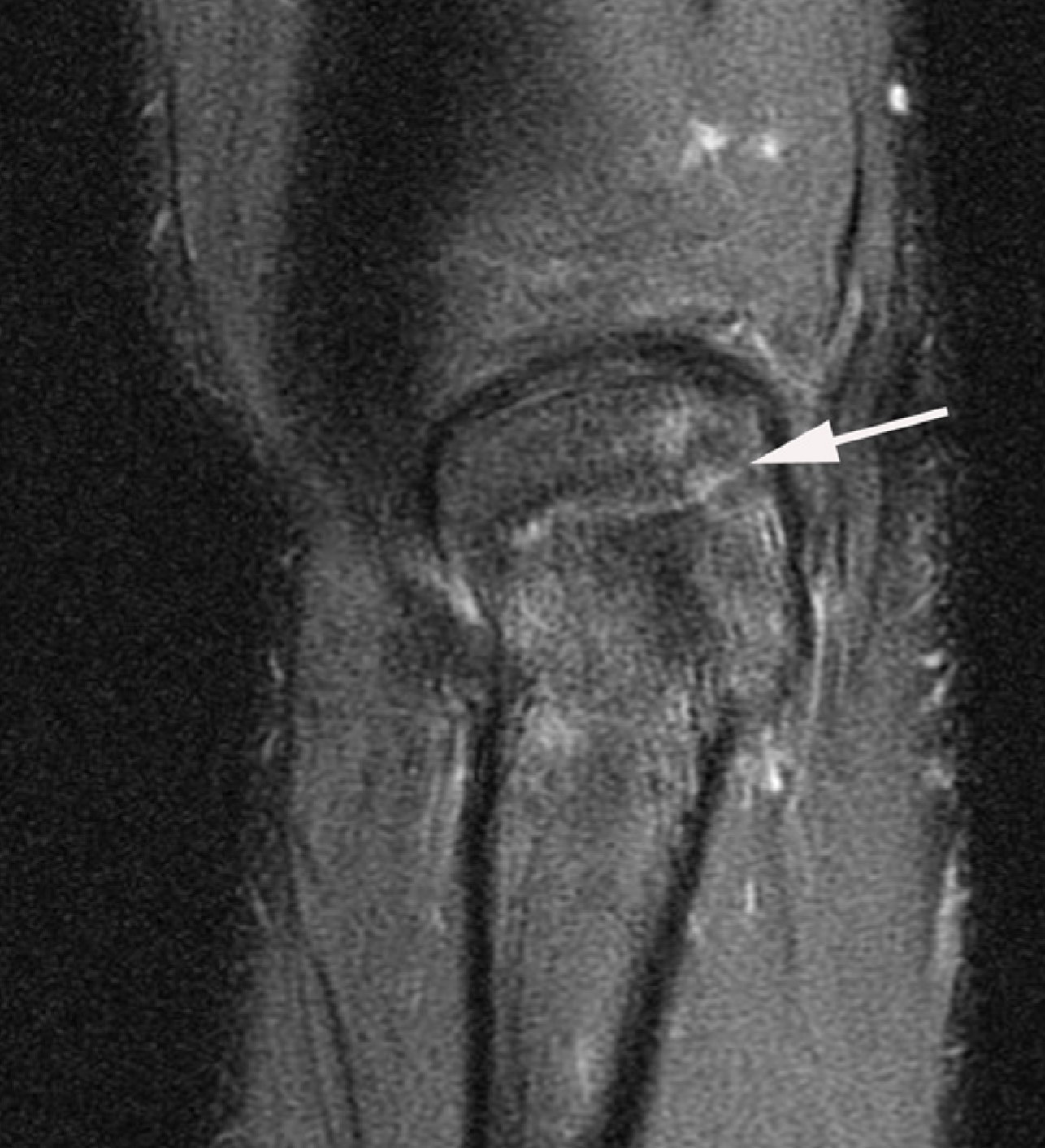

FIGURE 11. Olecranon stress fracture in a 17-year-old boy. Coronal PD FS image shows a transverse, incomplete fracture (arrow) through the olecranon process with sparing of the lateral cortex.

Panner disease

Panner disease is an osteonchondrosis that affects the capitellum in throwing athletes between the ages of 7 and 12 years, who present with pain and impaired extension of the dominant arm.12,58,59 Panner disease is thought to occur because of disruption of the tenuous vascular supply to the capitellum. Early in Panner disease, radiographic subchondral lucency may be appreciated, whereas disease progression may demonstrate a fragmented and sclerotic capitellum.12,58,59 In contradistinction to osteochondritis dissecans, Panner disease is rarely associated with intra-articular bodies and characteristically responds to conservative management. Once healed, there is usually no residual radiographic abnormality.12,59 Low T1 and high T2 signal in the capitellum is typical on MRI in the acute setting, whereas low T2-weighted signal may develop in the setting of sclerosis and healing.59

Osteochondritis dissecans

Osteochondritis dissecans of the capitellum usually affects adolescent athletes between 12 and 16 years old.12,60,61 Lesions are typically unilateral in baseball pitchers, handball and water polo players, but bilateral in gymnasts and weightlifters.62 Patients typically present with pain, stiffness, and swelling. Radiographs may be normal early in the disease, but will eventually show capitellar lucency and articular flattening; sclerosis, fragmentation, loose bodies, and radial head enlargement occur later.60-62 MRI is more sensitive for detecting early osteochondral injury and should be obtained if there is any suspicion of defect on initial imaging. Early osteochondritis demonstrates low T1-weighted signal in the capitellum, with or without high T2 signal.25 Injury to the subchondral bone occurs early, and may progress to separation of the articular cartilage with fragmentation in lesions classified as unstable.12,25,60 Fragment instability is implied by any of the following: high T2 signal surrounding the fragment, cysts deep to the fragment, or high T2 signal within the fragment.12,25,60 MR arthrography can help detect cartilage defects and intra-articular bodies, and can help guide management decisions (Figure 12).12,61,62 Type I (nondisplaced) lesions respond to rest, non-steroidal anti-inflammatory drugs (NSAIDs), and physical therapy.58 Type II (mildly displaced) fragments are treated with splinting and rest, while Type III (detached) fragments require surgical intervention.12,61,62 If left untreated, fragment migration with progressive joint debility may result.12,24

FIGURE 12.

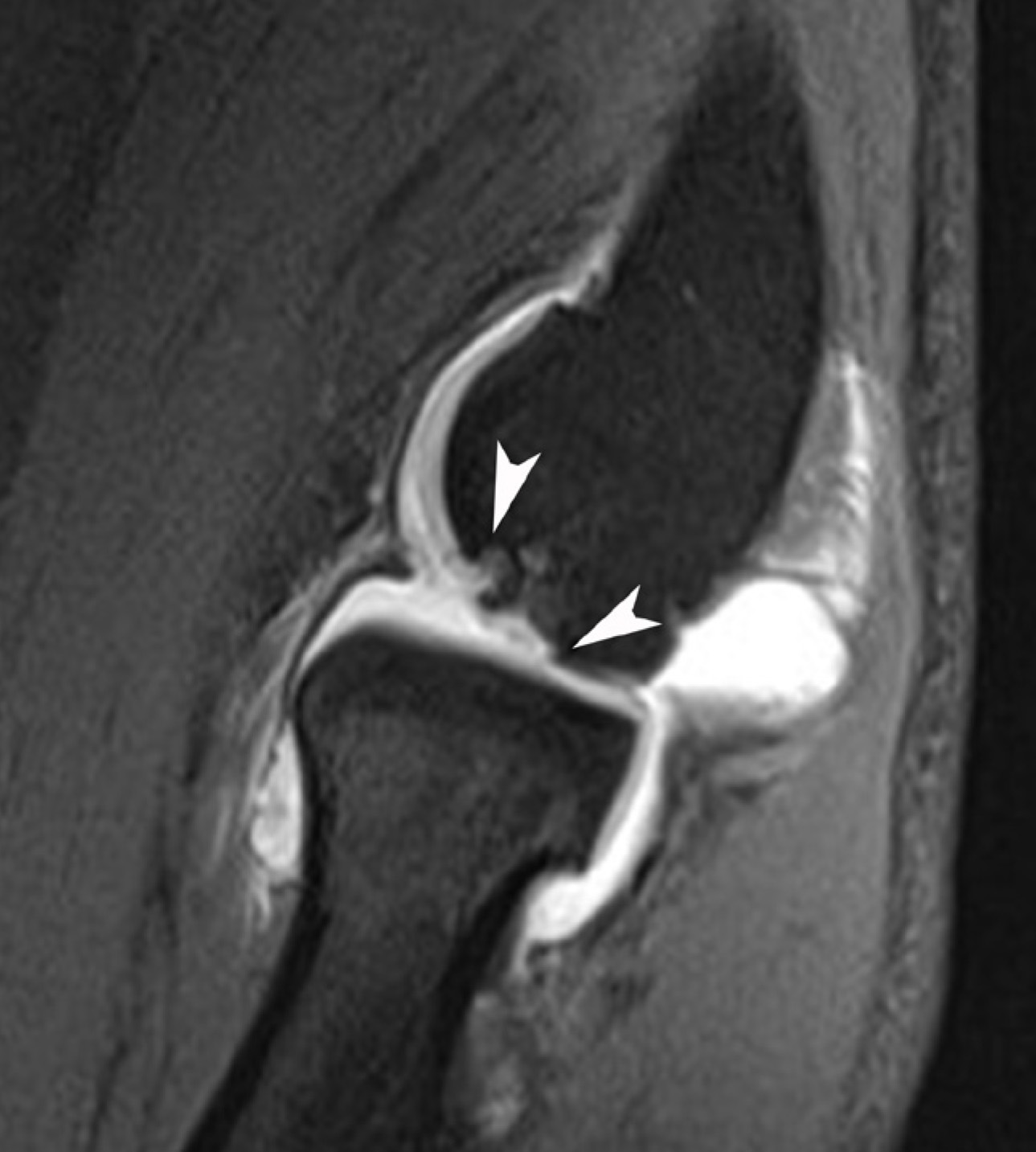

FIGURE 12. Osteochondritis dissecans of the capitellum in a 14-year-old female gymnast with chronic elbow pain. Sagittal MR arthrogram through the radiocapitellar joint demonstrates full-thickness cartilaginous defect and subcortical cystic change of the volar and central aspect of the capitellum (arrowheads).

Elbow dislocation

The elbow is the second-most commonly dislocated joint, with posterior dislocation being the most common type.63 The ulna is displaced posteriorly relative to the humerus, resulting in impaction of the coronoid process against olecranon and posterior capitellum against the radial head (Figure 13). When dislocations are associated with coronoid process and radial head fractures, the injury pattern is referred to as the “terrible triad.”64,65 The radial and ulnar collateral ligament complexes are almost always ruptured after elbow dislocation, and MRI is not necessary for confirmation. However, if MRI is performed after elbow dislocation, the adjacent neurovascular structures should be evaluated, given the morbidity associated with these lesions.66

FIGURE 13.

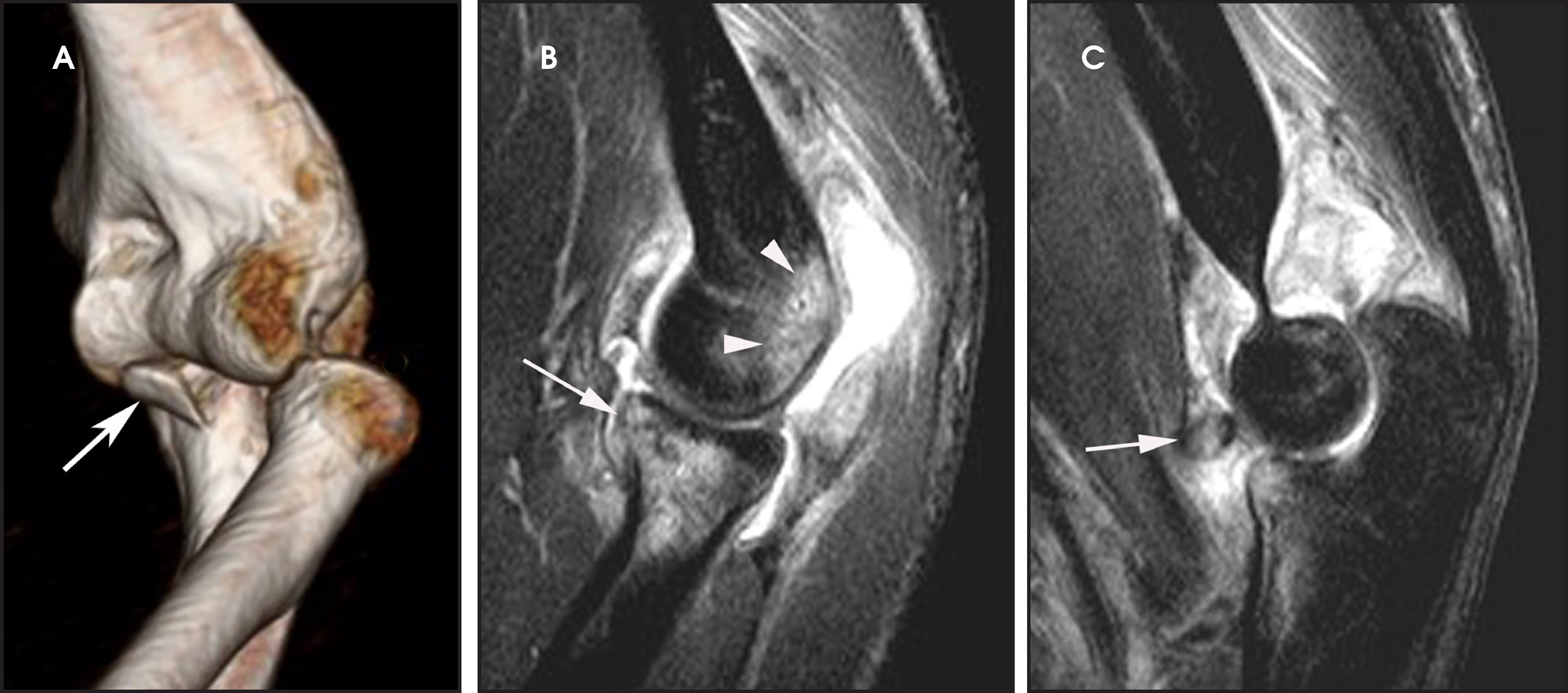

FIGURE 13. Posterior elbow dislocation. (A) 3D surface rendered CT image of the posteriorly dislocated elbow demonstrates a coronoid process fracture fragment (arrow) and abutment of the anterior radial head against the posterior capitellum. (B and C) Coronal FSE PD FS postreduction images in a 16-year-old boy define a nondisplaced radial head fracture (arrow) and posterior capitellar contusion (arrowheads) on (B) and displaced coronoid process fracture (arrow) on (C). Note the large hemarthrosis.

Conclusion

Imaging plays an important role in the evaluation of athletes with elbow soft tissue and/or osseous trauma. Tendinosis and tendon tears of the common extensor tendon origin occurring in tennis players are far more common than injuries involving the common flexor-pronator tendon origin of golfers and pitchers. Concomitant lateral and medial collateral ligament injuries should be sought with MR imaging or sonography in patients with recalcitrant elbow pain in order to address underlying sources of instability. Finally, pitching injuries related to medial tension overload, lateral compression and extension overload include injuries of the flexor-pronator tendon and lateral collateral ligament complex, cubital tunnel syndrome, medial epicondyle apophysitis and avulsion injuries, sublime tubercle and olecranon stress fractures, posteromedial impingement, Panner disease and osteochondritis dissecans.
