Intraventricular hemorrhage secondary to arterial venous malformation

Applied Radiology — Vol. 42 , Issue 11 , pp. 38 -40

DOI: 10.37549/AR2032

Published: November 1, 2013

Amanda K. Fitzwater, MD, Georgianne M. Snowden, MD

Categories

article article Article

Case summary

A 22-year-old male presents to the emergency department with headache and vomiting. Two days prior to evaluation, the patient had a sudden onset of occipital headache, which resolved later the same day.

Advertisement

IMAGING FINDINGS

There are multiple abnormal enhancing vessels centered in the midbrain, right thalamus, third and lateral ventricles (Figures 1-4) compatible with arteriovenous malformation. Associated venous varices extend into the lateral ventricles (Figures 1-3 and 5).

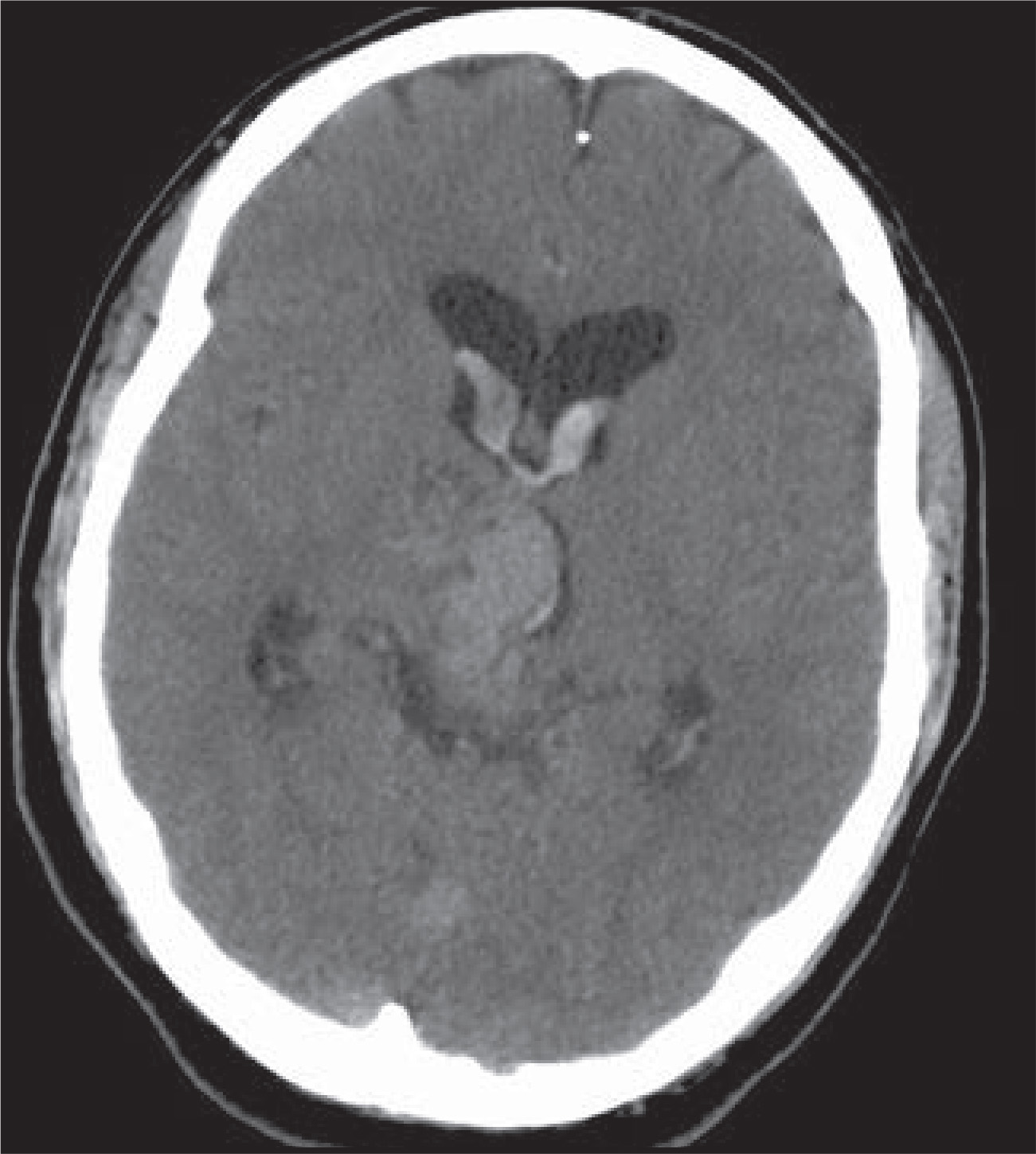

FIGURE 1.
FIGURE 1. Noncontrast head CT. Arteriovenous malformation centered at the upper mid-brain extends into the right thalamus and third ventricle.

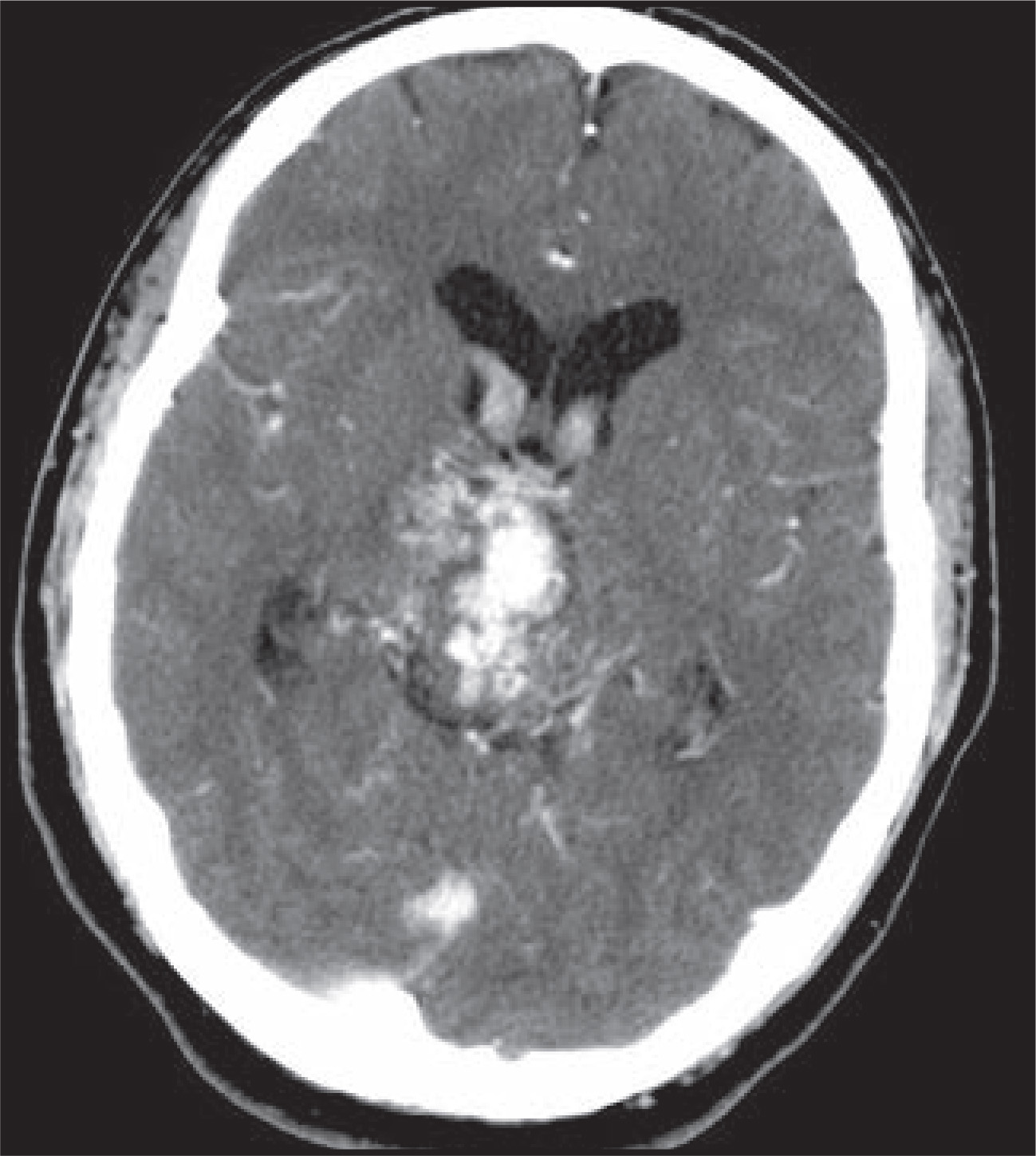

FIGURE 2.
FIGURE 2. Contrast-enhanced head CT. Large complex AVM in the midbrain with extension into the right thalamus and third ventricle. Multiple draining veins are seen in the region of the vein of Galen and circummesencephalic cistern. Dilated draining veins are seen in both lateral ventricles.

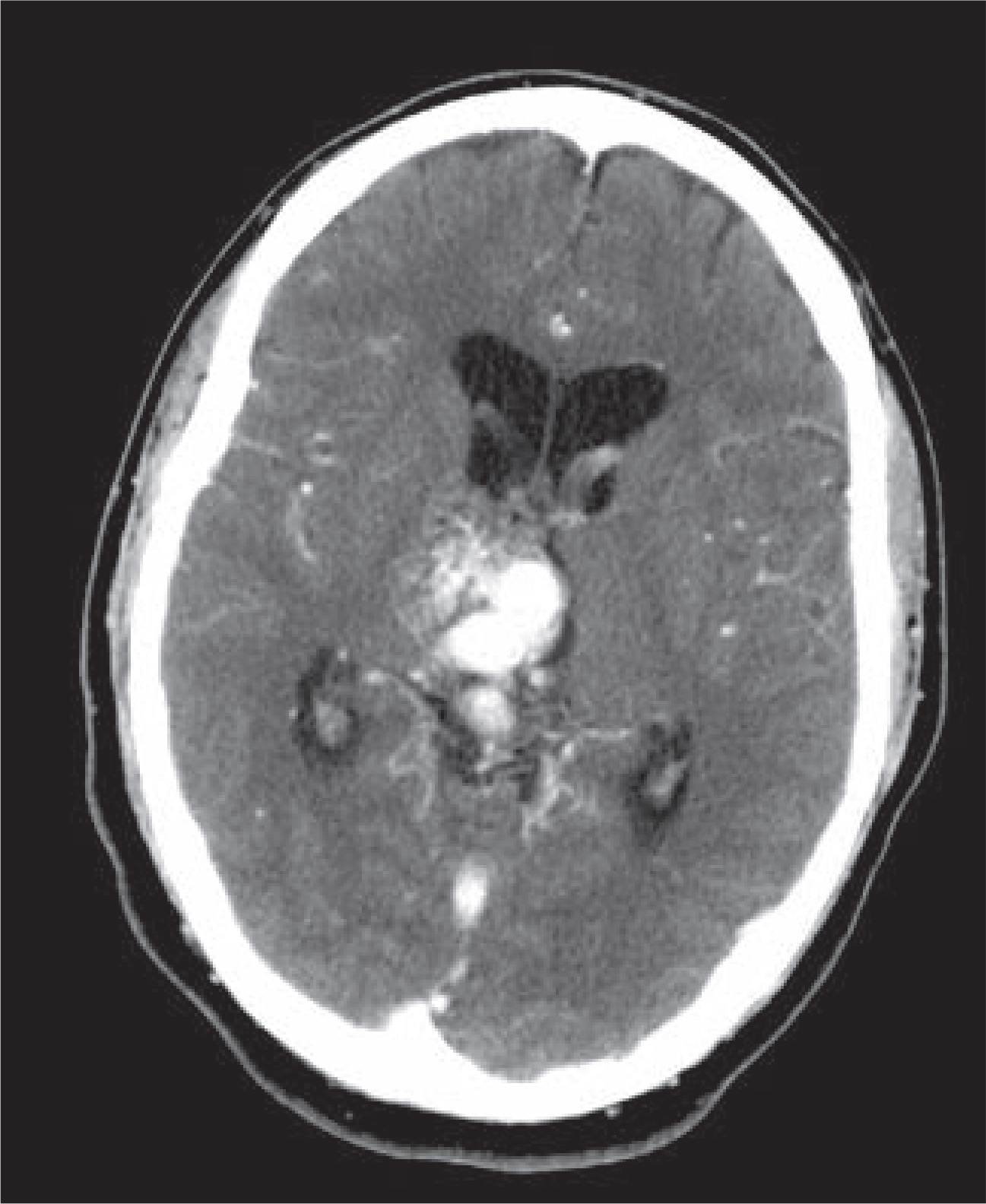

FIGURE 3.
FIGURE 3. Contrast-enhanced head CT. Complex AVM with large venous ectasia is located in the region of vein of Galen with varices in the lateral ventricles.

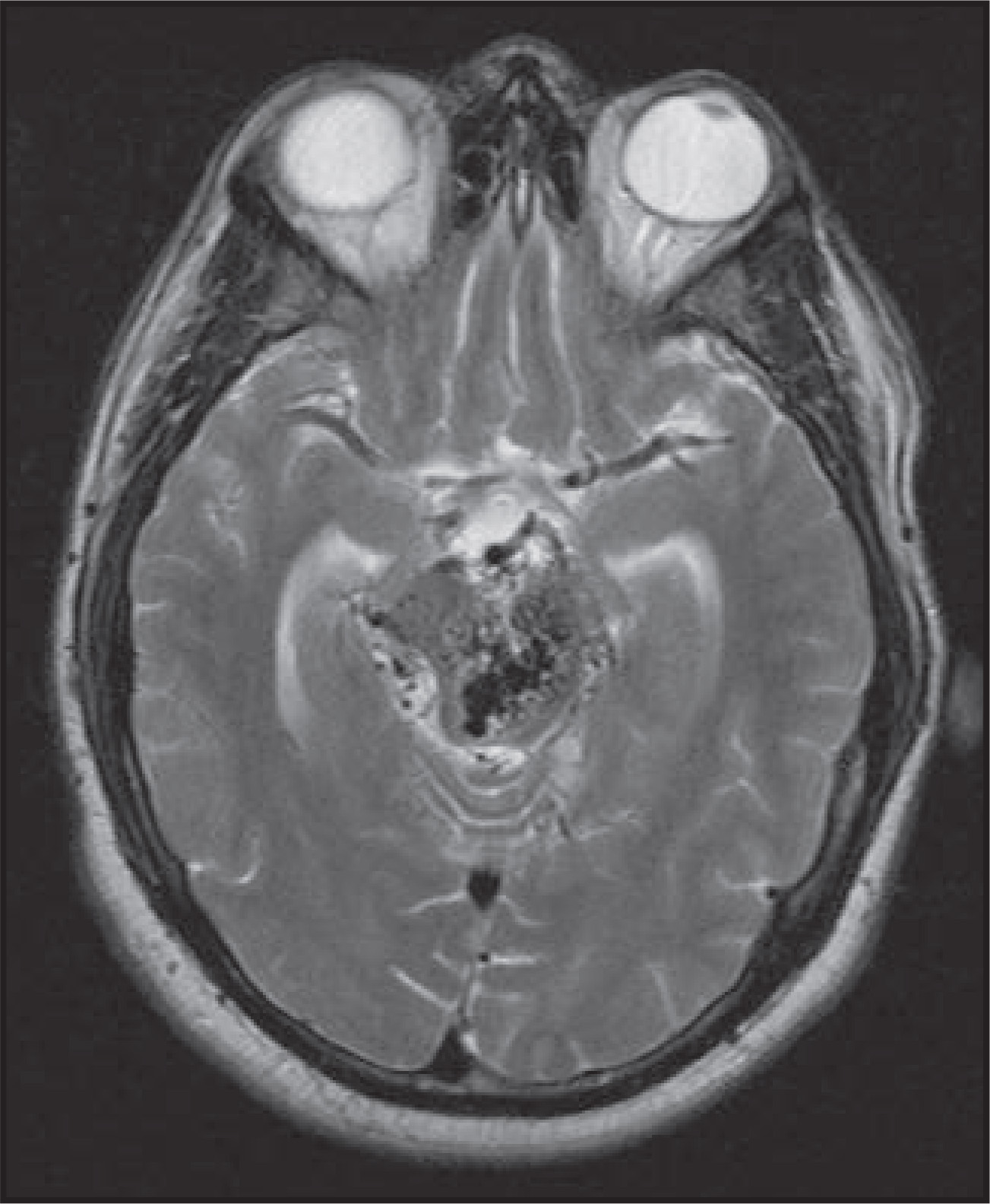

FIGURE 4.
FIGURE 4. T2-weighted brain image. Enlarged posterior cerebral arteries and branches feed the AVM, which is seen as multiple flow voids in the upper midbrain.

Dominant arterial supply is via the posterior cerebral arteries and distal branches of the basilar artery (Figures 4, 6, and 7). Primary drainage is through ectatic internal cerebral veins, the vein of Galen, and, ultimately, the straight sinus (Figure 6).

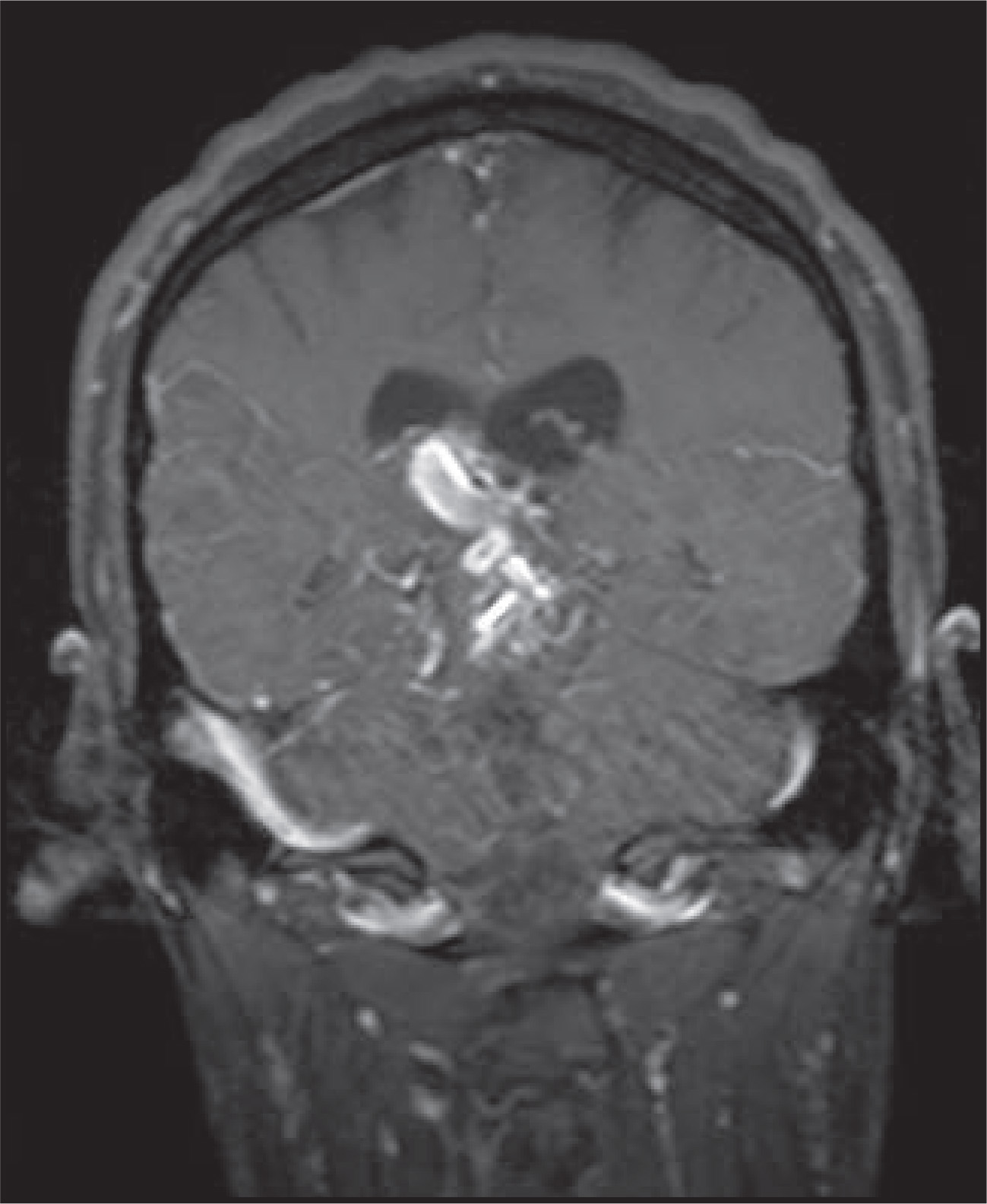

FIGURE 5.
FIGURE 5. Coronal Gad+ T1WI Brain. Associated venous varix extends into the right lateral ventrical.

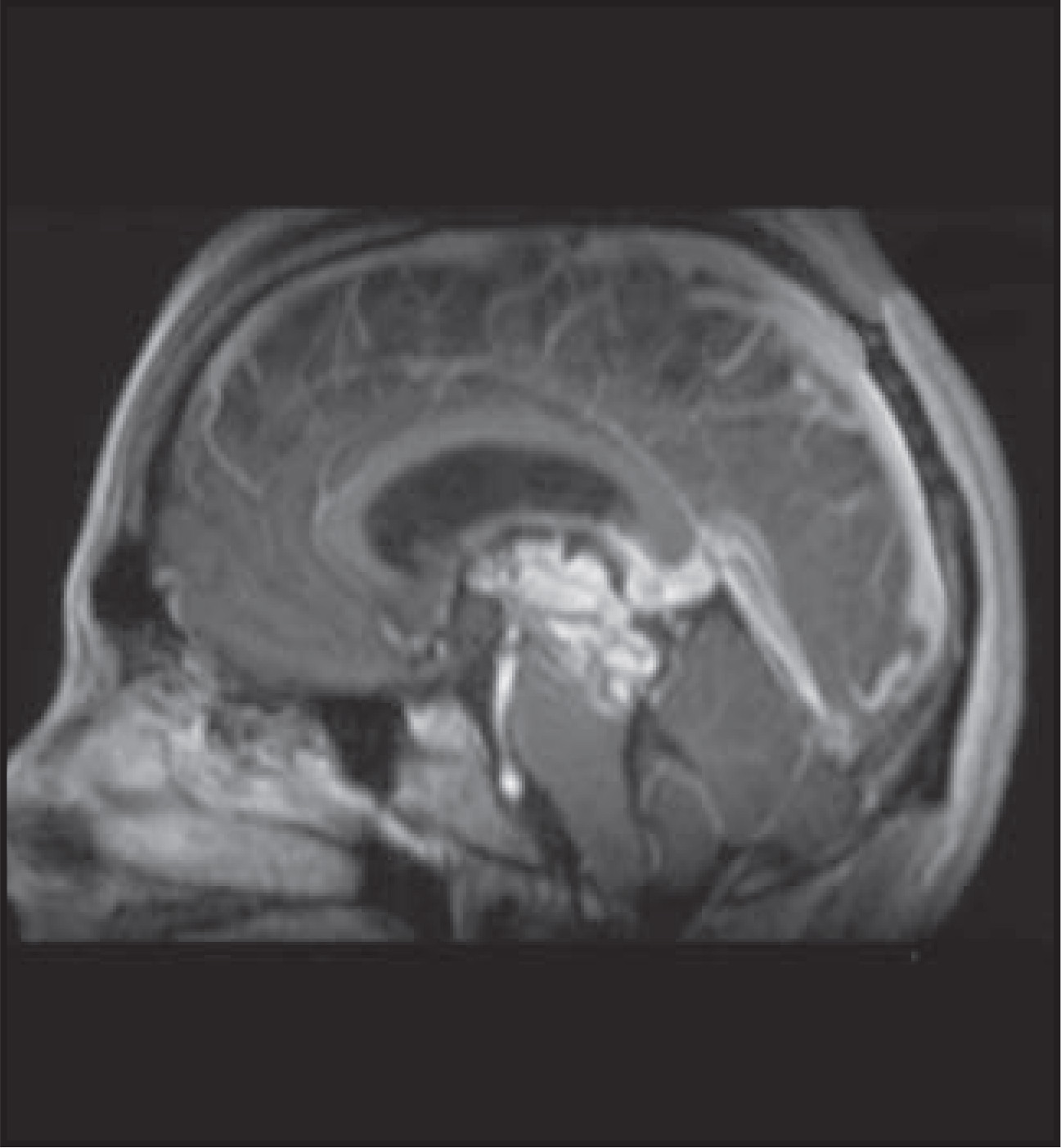

FIGURE 6.
FIGURE 6. Sagittal Gad+ T1WI. In addition to the posterior cerebral arteries the enlarged basilar artery feeds the AVM. Primary drainage is through ectatic internal cerebral veins, the vein of Galen and, ultimately, the straight sinus.

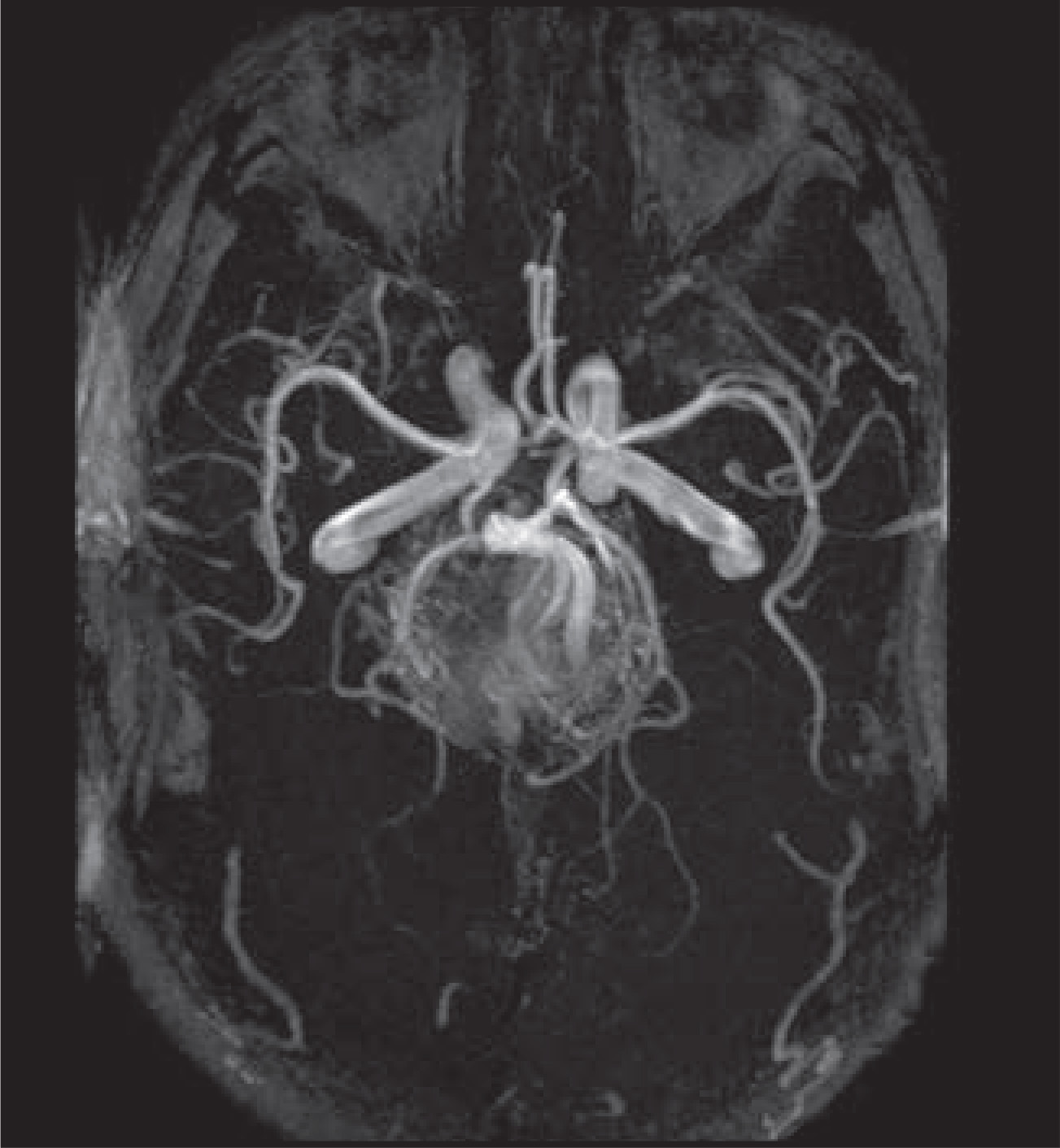

FIGURE 7.
FIGURE 7. Dominant arterial supply is via the posterior cerebral arteries and distal branches of the basilar artery.

Advertisement

Diagnosis

Intraventricular hemorrhage secondary to arterial venous malformation

Advertisement

Discussion

Arteriovenous malformations (AVM) are the most common symptomatic cerebral vascular malformation and generally present between the second and fourth decades of life.1 An AVM is a direct vascular communication between the arterial and venous systems via a tangle of abnormal vessels called a nidus. No brain parenchyma is found within the nidus.Classically, AVMs are wedge-shaped with the apex directed toward the ventricle and the base along the cortex with enlarged feeding arteries and draining veins, but no associated edema.2 More than 80% are supratentorial (particularly, parietal in location) and the majority are solitary.3 Multiple AVM are associated with Rendu-Osler-Weber syndrome and Wyburn-Mason syndrome. Normal arterioles and capillaries are not present and this produces a low-resistence/high-flow lesion which is prone to hemorrhage.

Rate of hemorrhage is approximately 2% to 4% per year4 and risk of hemorrhage is increased by several factors: intranidal aneurysm, high intranidal pressure from either increased pressure in feeding arteries or restricted outflow in the venous drainage and deep location(characterized by: periventricular/intraventricular or basal ganglian AVMs, central venous drainage, arterial supply from the vertebrobasilar system or perforating arteries).5 A 10% to 15% mortality rate is associated with each hemorrhagic event, and permanent neurologic deficit associated with hemorrhage is twice the risk of death, about 20% to 30% per event. AVM-associated neurologic deficit can occur in the absence of hemorrhage and is a significant factor in morbidity and mortality.6 Another common clinical manifestation of AVMs is seizure, particularly for large lesions and those located in the temporal and frontal regions.

Full characterization of the AVM is paramount to planning therapy and should include: specific identification of the feeding arteries(number, location, collateral circulation and possible vascular “steal” from adjacent parenchyma), associated aneurysms, presence/age of hemorrhage, description of the nidus (location, size, and flow characteristics), venous drainage of the AVM and surrounding normal brain (presence of venous thrombosis, restriction to outflow, and mass effect) and follow-up of any prior therapy.7 This information is used to plan therapy and predict response to treatment. Spetzler and Martin proposed a widely used grading system, which is based onAVM size, eloquence of adjacent brain, and pattern of venous drainage.8

The goal of therapy is complete obliteration of the nidus and this may be attempted by surgical excision, intravascular embolotherapy or radiotherapy depending on the characteristics of the AVM and operative risk.9 Conventional catheter angiography is superior to MR in identifying specific arterial supply and venous drainage of the AVM, but MR is more accurate than CT or angiography in determining nidus size and degree of nidus obliteration post embolotherapy.10 Surgery is most successful in smaller more superficial lesions. If theAVM is deep within the brain parenchyma and/or the operative risk is high and the lesion is < 3.5 cm, stereotactic external beam radiation is used. Intravascular embolization is used preradiotherapy to shrink large lesions and before surgical excision to eliminate deep feeding arteries. A combined therapeutic approach tailored to the specific characteristics of each AVM has been the most successful.

Conclusion

Intracranial hemorrhage in the absence of tumor should prompt investigation for AVM. Risk of morbidity and mortality is high in AVMs even without hemorrhage. Conventional catheter angiography remains superior to MR in delineating specific arterial supply and venous drainage of the AVM, but MR is more accurate than CT or angiography in determining nidus size and degree of nidus obliteration post embolotherapy. The goal of therapy is complete obliteration of the nidus for cure.

References

  1. Wilkins R. Vascular malformations. Neurosurgery. 1985:1448-1473.
  2. Burger P. Vascular tumors and tumor-like lesions. Tumors of the central nervous system. 1994:287-299.
  3. Castillo M. Vascular malformations. Neuroradiology Companion. 1999.
  4. Heros R, Korosue K. Arteriovenous malformation of the brain. Curr Opinion Neurol Neurosurg. 1990;3:63-67.
  5. Fleetwood I, Marcellus M, Levy R. Deep arteriovenous malformations of the basal ganglia and thalamus: Natural history. J Neurosurg. 2003;98((4)):747-750.
  6. Anderson E, Petersen J, Mortensen E, Udesen H. Conservatively treated patients with cerebral arteriovenous malformation: Mental and physical outcome. J Neurol Neuro surg Psychiatry. 1988;51:1208-1212.
  7. Atlas S. Intracranial vascular malformations and aneurysms. Magnetic Resonance Imaging of the Brain and Spine. 2002.
  8. Spetzler R, Martin N. A proposed grading system for intracranial arteriovenous malformations. J Neurosurg. 1986;65:476-483.
  9. Söderman M, Andersson T, Karlsson B. Management of patients with brain arteriovenous malformations. Eur J Radiol. 2003;46((3)):195-205.
  10. Smith H, Strother C, Kikuchi Y. MR imaging in the management of supratentorial intracranial AVMs. Am J Roetgenol. 1988;150((5)):1143-1153.
