MRI for appendicitis in pediatric patients

Applied Radiology — Vol. 46 , Issue 9 , pp. 18 -24

DOI: 10.37549/AR2413

Published: September 1, 2017

James M. Brian, MD1, Michael M. Moore, MD1

1 Assistant Professor of Radiology and Pediatrics at Penn State College of Medicine, Hershey, PA

Categories

article article article

Children with suspected acute appendicitis frequently undergo diagnostic imaging. Computerized tomography (CT) is a favored imaging modality in this clinical setting because of its accuracy and availability.1 CT provides both high sensitivity and specificity for the diagnosis of appendicitis.2 However, as the number of CT scan requests has increased, the medical community has raised concern about the potential risks associated with the inherent ionizing radiation exposure. Subsequently, the use of alternative modalities in children has increased.3 Ultrasound (US), for example, is favored by some physicians. In the hands of a skilled sonographer and with the appropriate patient, US is a good alternative to CT in diagnosing pediatric acute appendicitis.3 Of note, sonography’s sensitivity for appendicitis is less than CT’s4, and can be limited by operator dependence, patient body habitus, and sonographically obscure anatomic locations (retrocecal and deep pelvic regions).5 This combination of factors can result in equivocal or nondiagnostic ultrasound studies. A recent study found that ultrasound is indeterminate in 28% of cases.6

These limitations of CT and ultrasound have led to the introduction of MRI for the assessment of appendicitis in children.7-9 Many institutions have demonstrated MRI to be a reliable alternative to CT in the imaging diagnosis of appendicitis in children and adults.9-16 A pediatric-specific appendicitis MRI meta-analysis demonstrated a sensitivity of 96.5% and specificity of 96.1%, based on eleven studies in children.17 A meta-analysis of all published appendicitis MRI studies (including adults, pregnant patients, and children) also demonstrated a sensitivity and specificity of 96% and 96%, respectively, based on 30 studies.18 Additionally, favorable clinical outcomes, including time from initial clinical assessment to admission, time to antibiotic administration, time to appendectomy, and negative appendectomy rate have also been demonstrated in children at two institutions.9,19 Based on this growing body of evidence, MRI is a suitable alternative to CT in evaluating children for suspected appendicitis.

Technique

At our institution, a rapid, four-sequence, nonsedated, noncontrast MRI examination of the pediatric abdomen and pelvis has replaced CT and US in the emergent evaluation of children with suspected appendicitis. This protocol consists of axial and coronal T2 single-shot turbo spin-echo (SS-TSE) and axial and coronal T2 SS-TSE with fat saturation using spectral adiabatic inversion recovery (SPAIR) fat-suppression technique. While this protocol is more abbreviated than many other abdominal MRI examinations, the diagnostic performance and clinical outcomes validate the efficacy.9 Another recent clinical effectiveness study utilizing a similar protocol (unenhanced four-sequence T2 SS-TSE-based protocol) has also demonstrated excellent diagnostic performance in nonsedated children following equivocal ultrasound.15 At our institution we utilize 4-mm slices to cover the lung base through the pubic symphysis in the axial plane and mid liver to pubic symphysis on coronal images.

A recent systematic review of MRI in pediatric appendicitis drew the following four conclusions regarding pulse sequence selection:17

  1. 1

    SS-TSE is the crucial sequence for MRI appendicitis evaluation in children.

  2. 2

    While gadolinium-enhanced T1-weighted sequences may increase the radiologist’s degree of confidence in interpretation, the diagnostic performance is statistically similar and additional added value beyond noncontrast technique is not confirmed. Additionally, IV gadolinium increases cost and acquisition time.

  3. 3

    Diffusion weighted imaging (DWI) may be helpful and carries no significant added cost. However, DWI has not been included in patient outcome studies. If an institution chooses to use DWI, a b value of 500s/mm2 is suggested.

  4. 4

    Balanced steady-state free precession (bSSFP) sequences are often noncontributory.

Perhaps the most important aspect of a successful program is avoiding sedation. Initially, our target age range was children aged 5 to 17 years who could reasonably be expected to remain still in the MRI scanner for 15 minutes. However, we now often successfully image even younger children without sedation depending on their ability to cooperate. Nearly all patients 5 years and older, and selected younger patients may undergo evaluation with the above MRI protocol without sedation.17 Imaging without sedation has been validated by multiple institutions.9,12,14,15,19,20

Advertisement

Image interpretation

Appendicitis

Focal periappendiceal inflammation is a hallmark of acute appendicitis and is readily detectable on the T2-weighted fluid sensitive sequences as high signal in the soft tissues adjacent to the appendix (Figure 1). In addition, fluid fills the lumen of the obstructed appendix, although it must be noted that a normal appendix may occasionally have a small amount of intraluminal fluid (in the absence of other findings). Appendicoliths are often visible (approximately 40% of cases)14 as intraluminal foci of signal dropout, and can be helpful in making the diagnosis, particularly when found obstructing the appendiceal lumen (Figures 2, 3). In tip appendicitis, the proximal appendix may appear normal; thus, it is important to assess the entire length of the appendix (Figure 4). Appendiceal enlargement is often present but is not an absolute criterion to diagnose appendicitis in the absence of surrounding inflammation.21 A ruptured appendix with abscess formation will be evident if an adjacent fluid collection is present (Figure 5). Further examples and expanded discussion are available in a previously published case interpretation pictorial essay.21

FIGURE 1.
FIGURE 1. Acute appendicitis. 14-year-old girl with two days of abdominal pain. Coronal SS-TSE (A) and axial SS-TSE with fat saturation (B) images demonstrate an enlarged, fluid-filled appendix with surrounding inflammatory changes (arrows), which is the typical appearance of an acute appendicitis. Appendicitis confirmed by pathology.
FIGURE 2.
FIGURE 2. Acute appendicitis with appendicolith. 3-year-old boy presenting with fever and abdominal pain. An obstructing appendicolith (arrow) is visible at the base of the appendix on the SS-TSE coronal image (A). Coronal SS-TSE with fat saturation (B) demonstrates focal periappendiceal inflammation (arrow), enlargement, and a fluid-filled lumen. Appendicitis confirmed by pathology
FIGURE 3.
FIGURE 3. Acute appendicitis with two appendicoliths. 14-year-old girl with obstructing appendicolith at base of appendix (arrow) on axial SS-TSE T2 image (A). Coronal SS-TSE (B) demonstrates inflamed appendix containing second non-obstructing appendicolith in the distal appendix (arrow). Focal periappendiceal inflammation also well visualized on the coronal image. Appendicitis confirmed by pathology.
FIGURE 4.
FIGURE 4. Tip appendicitis. 3-year-old boy presenting with fever and abdominal pain. On axial SS-TSE image the tip of the appendix is distended to 1.2 cm in diameter, fluid filled, and has focal surrounding inflammation (arrow). Proximal appendix is also visible and appears normal (arrowhead). Tip appendicitis confirmed at surgery and pathology.
FIGURE 5.
FIGURE 5. Periappendiceal abscess. 10-year-old boy with acute abdominal pain and fever found to have perforated appendicitis. Axial SS-TSE image demonstrates a focal walled off fluid collection with adjacent inflammatory changes (arrow). The oval focus of signal drop out in the nondependent portion of the collection represents a locule of air (rather than fecolith). The patient was initially treated with a percutaneous drain followed by an interval appendectomy 6 weeks later.

Advertisement

Normal appendix

The normal appendix on MRI, as on CT, is visible as a blind-ending tubular structure arising from the cecum. The normal appendix may be filled with air (low T2 signal in an nondependent position) or fluid (Figure 6). Detection of a normal appendix has increased with protocol optimization and experience. The normal appendix will be visualized in 70 to 80% of cases.17 We have also realized that inherent non-visualization of the appendix due to adjacent bowel or lack of intraperitoneal fat implies that the appendix is not inflamed or enlarged. Essentially, an inflamed appendix will almost certainly be visible on MRI. Furthermore, a small amount of pelvic peritoneal free fluid is a nonspecific finding in children with abdominal pain and is not diagnostic of appendicitis (Figure 7), although this finding does merit an additional higher level of scrutiny.21 Using this approach, our institutional negative predictive value is 98.9%.9 The negative predictive value of appendicitis MRI in children is 98.3% in the pediatric meta-analysis,17 a statistic that helps to facilitate efficient patient disposition from the emergency department.

FIGURE 6.
FIGURE 6. Normal appendix. 10-year-old girl with right lower quadrant pain. On coronal (A) and axial (B) SS-TSE images the appendix is a non-distended tubular structure arising from the cecum (arrows). There are no inflammatory changes in the periappendiceal soft tissues.
FIGURE 7.
FIGURE 7. Normal appendix. 9-year-old girl presenting with abdominal pain. The appendix cannot be identified on either the coronal (A) or axial (B) SS-TSE images. However, a small amount of free fluid in the right lower quadrant of the pelvis (arrow) is present. Based on clinical and imaging findings, viral enteritis was diagnosed; she recovered by subsequent outpatient follow up visit. The presence of small amount of free fluid with a normal appendix or without visualization of the appendix is not uncommon and does not alone imply appendicitis.

Alternative diagnoses

MRI has the additional benefit of identifying alternative diagnoses as the cause of abdominal pain in up to 20% of patients, based on studies from three institutions.15,20,22 While these alternative findings may be visible on CT, they would not necessarily be evident on a directed US examination of the appendix. The most common alternative diagnoses included adnexal cysts (Figure 8) and enteritis/colitis (Figure 9). Other relatively common and important alternative diagnoses include pyelonephritis, hydronephrosis, and ovarian torsion. Multiple examples of ovarian torsion are available for review within the literature.17,22 Occasionally, MRI will demonstrate unexpected or unusual etiologies for abdominal pain (Figure 10).

FIGURE 8.
FIGURE 8. Hemorrhagic ovarian cyst. 15-year-old girl presenting with right lower quadrant pain. Axial (A) and coronal (B) SS-TSE T2 images show a cyst with adherent internal debris arising from the right ovary, most consistent with a hemorrhagic cyst. The remaining right ovarian parenchyma is unremarkable and the appendix was normal (not shown). Symptoms were found to have resolved at follow-up appointment with adolescent gynecology.
FIGURE 9.
FIGURE 9. Terminal ileitis. 16-year-old boy with right lower quadrant pain. Coronal SS-TSE with fat saturation (A) and axial SS-TSE (B) images reveal wall thickening and inflammation of the terminal ileum (arrows). The appendix was normal (not shown). Subsequent clinical evaluation revealed that the small bowel inflammation etiology was infectious.
FIGURE 10.
FIGURE 10. 9-year-old male with nephrotic syndrome presenting with abdominal pain. On axial SS-TSE image (A) a normal appendix is demonstrated (arrowhead on axial image). Although the presence of diffuse ascites from hypoalbumenia precludes evaluation for periappendiceal inflammation, the appendix is not enlarged and no intraluminal fluid is identified. Axial (A) and coronal SS-TSE with fat saturation (B) show multiple small-bowel intussusceptions (arrows), which proved to be the source of this patient’s abdominal pain. The patient was hospitalized for his nephrotic syndrome, receiving analgesia as needed for his pain, which resolved within 48 hours.

Advertisement

Current limitations

Evaluating appendicitis in children with MRI is not without limitations. Foremost is the need for ready access to an MRI scanner, a resource that is not uniformly available in all hospitals. The utilization of MRI for appendicitis assessment is particularly well suited for health systems that operate multiple magnets 24 hours per day. Second, while most patients can cooperate for the 15-minute exam time, a very young child (<5 years) or a severely neurologically impaired child may not be a good candidate. In these cases, we employ US as a first-line modality. Finally, a comparative cost effectiveness analysis that includes both direct and indirect costs is still needed to assess whether an imaging pathway utilizing MRI following equivocal ultrasound versus MRI as first-line imaging is the most effective approach.

Conclusion

The diagnostic and clinical outcomes associated with MR imaging of children with suspected appendicitis are excellent. A simplified, four-sequence protocol using T2 SS-TSE sequences is commonly utilized. Protocols longer than five sequences are not advised as they may hinder emergent magnet access. Gadolinium-enhanced T1 imaging has not been shown to provide added value beyond noncontrast technique. These studies should be performed without sedation, and may be attempted in children even younger than 5 years, depending on the child’s ability to cooperate. Multiple cases of appendicitis, the normal appendix, and alternative diagnoses are presented in this manuscript to assist the radiologist’s interpretation. The most salient interpretation feature of focal periappendiceal inflammation is emphasized in Figure 11.

FIGURE 11.

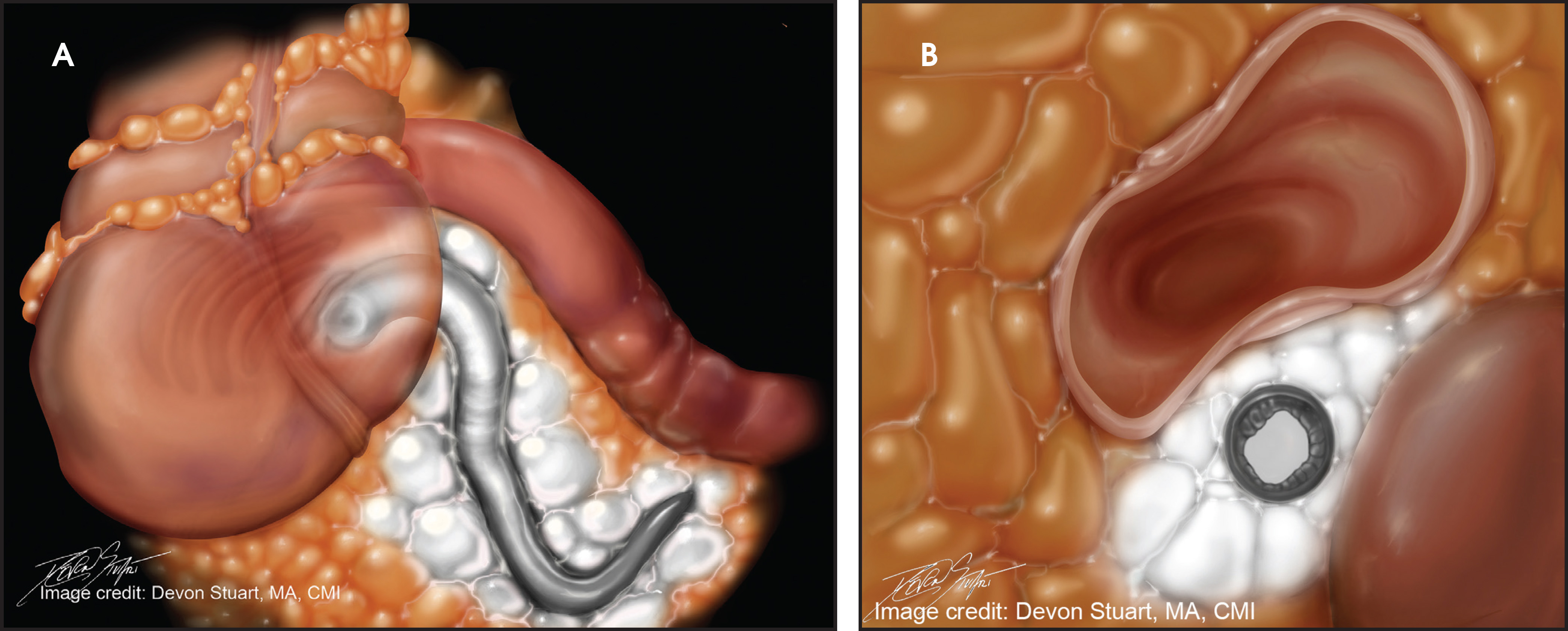

FIGURE 11. Retrocecal appendicitis. An artistic representation of the MRI findings of acute appendicitis fused with an anatomic illustration of the vermiform appendix presented in the coronal and axial planes, respectively. (Images created by Devon Stuart, MA, CMI, in conjunction with Michael Moore, MD).
